IMEX

Technical rope data

LUPES® TWIST TRAWL

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter30–32 mm
Weight75–100 kg/100m
Breaking load—
Material
100% HT Polyester Fiber + 6X7 Galvanized Wire Rope
Construction
3+1 Strand Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

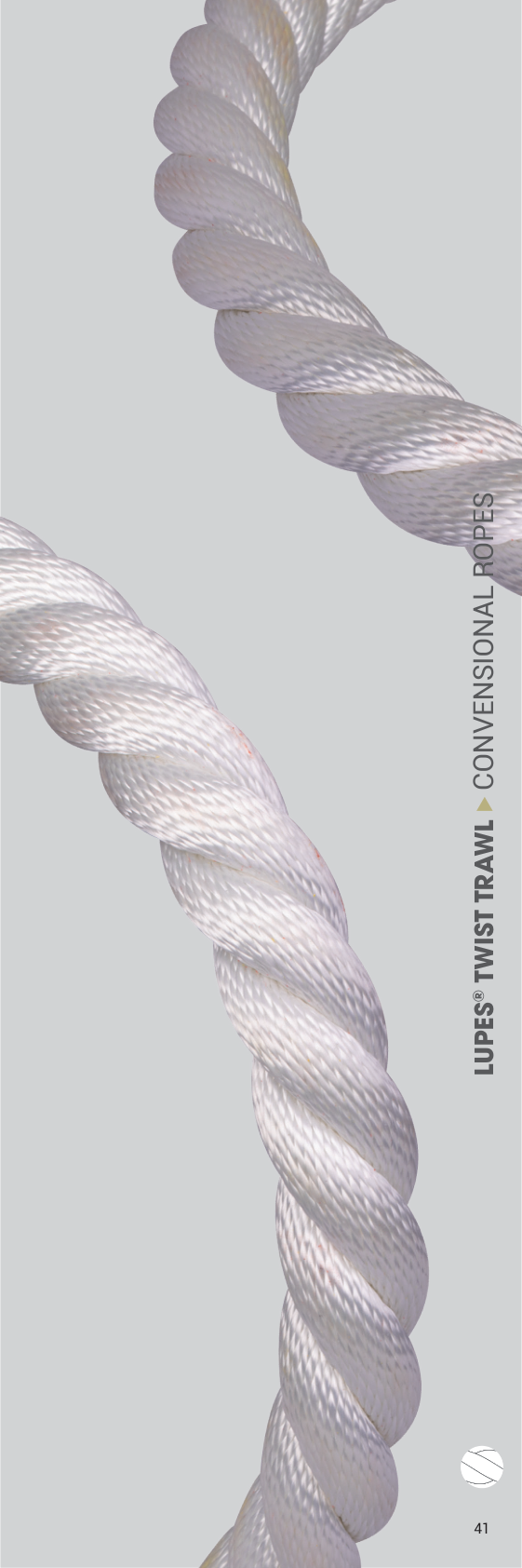

LUPES® TWIST TRAWL catalogue product image

Applications

Applications

Trawl/Bridle Line

Benefits

Benefits

Quick Sink RateDurable

Source catalogue data

Technical rope data

LUPES® TWIST TRAWL · PDF 1

Type
A
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Elongation at Break
Approx. %4-5
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyester Fiber + 6X7 Galvanized Wire Rope
Construction
3+1 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

LUPES® TWIST TRAWL · PDF 1

Diameter (mm)Weight (kg/100m)
3075
32100

Technical values below are taken from the source catalogue data used by ROPE FINDER.
