Technical rope data

LUPES® ULTRA

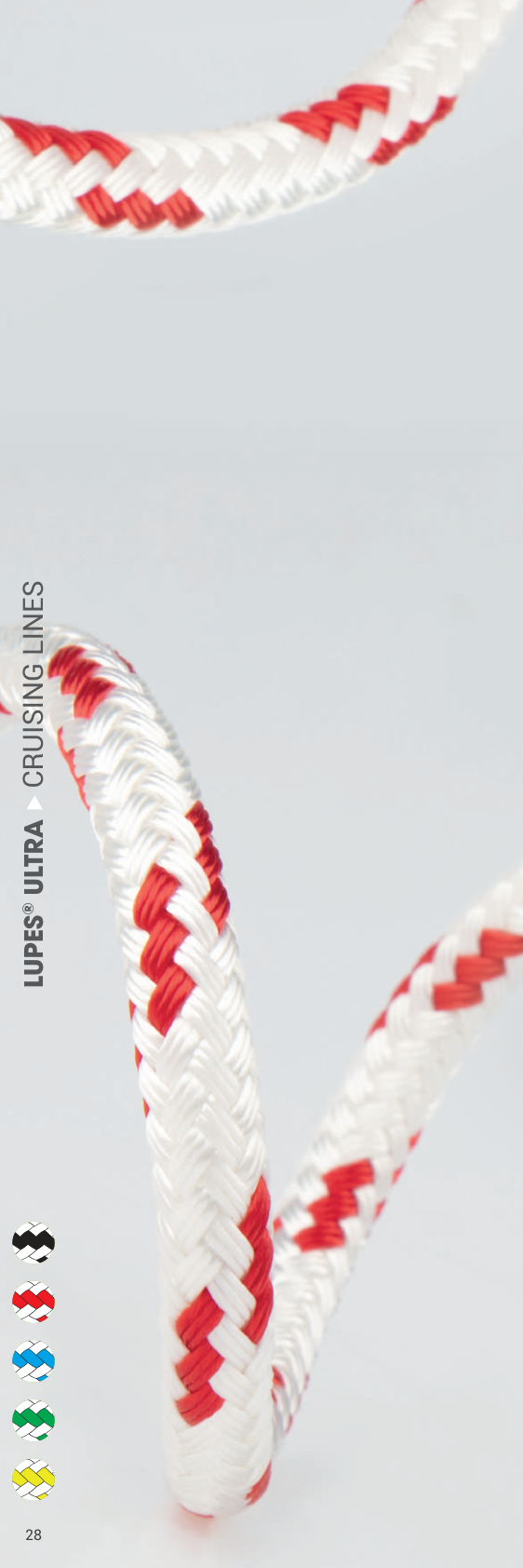

Name: LUPES® ULTRA
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quote View Brochure

Source catalogue data

Technical rope data

Diameter5–18 mm

Weight2–24.75 kg/100m

Breaking load670–10700 kgf

Material: HT Polyester Fiber
Construction: 16-24 Plaited / 16 Plaited
Source catalogues: Leisure Marine
Related markets: Leisure Marine

Applications

Main HalyardGenoa HalyardSpi HalyardReefing LinesMain SheetGenoa SheetSpi Sheet

Benefits

Easy to SpliceDurableVery Long Service LifeHigh Breaking LoadShares the Load EquallyBetween Cover and CoreStretches Less Than theStandard PolyesterOutstanding Flexibility

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 30

Specific Gravity: 1,38 kg/dm³
UV Resistance: Excellent
Chemical Resistance: Good
Melting Point: 256oC
Critical Temperature: 170oC
Working Stretch: <4%
Fiber Water Absorption: Approx. %1-2
Wet Abrasion: Good
Dry Abrasion: Good
Length: 100-200 m Plastic/Wooden Spool or Coil
Material: Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction: Cover: 16-24 Plaited Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

Diameter	Weight	Breaking load
5 mm	2 kg/100m	670 kgf
6 mm	2.85 kg/100m	1090 kgf
8 mm	4.85 kg/100m	1775 kgf
10 mm	6.55 kg/100m	2345 kgf
11 mm	9.2 kg/100m	3185 kgf
12 mm	12 kg/100m	4615 kgf
14 mm	14.1 kg/100m	5340 kgf
16 mm	18.4 kg/100m	7700 kgf
18 mm	24.75 kg/100m	10700 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
