IMEX

Technical rope data

LUPES® ULTRA FANCY

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter5–18 mm
Weight2–24.75 kg/100m
Breaking load670–10700 kgf
Material
HT Polyester Fiber
Construction
16-24 Plaited / 16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

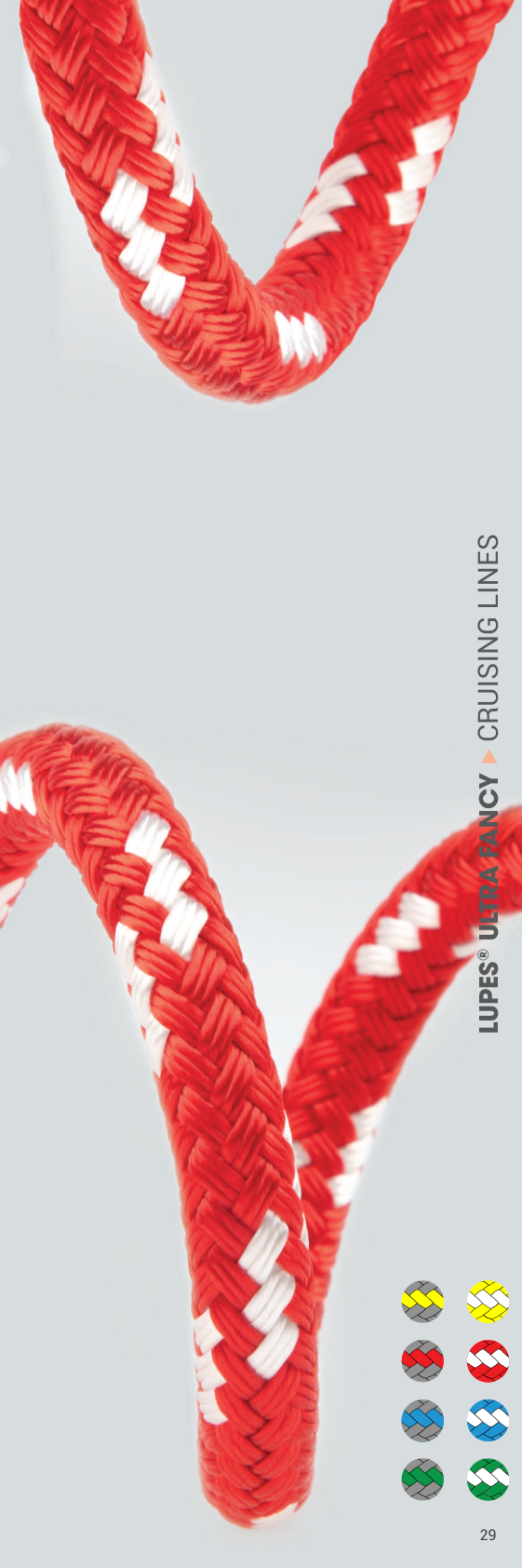

LUPES® ULTRA FANCY catalogue product image

Applications

Applications

Main HalyardGenoa HalyardSpi HalyardReefing LinesMain SheetGenoa SheetSpi Sheet

Benefits

Benefits

Easy to SpliceDurableVery Long Service LifeHigh Breaking LoadShares the Load EquallyBetween Cover and CoreStretches Less Than theStandard PolyesterOutstanding Flexibility

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 31

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<4%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 16-24 Plaited Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
5 mm2 kg/100m670 kgf
6 mm2.85 kg/100m1090 kgf
8 mm4.85 kg/100m1775 kgf
10 mm6.55 kg/100m2345 kgf
11 mm9.2 kg/100m3185 kgf
12 mm12 kg/100m4615 kgf
14 mm14.1 kg/100m5340 kgf
16 mm18.4 kg/100m7700 kgf
18 mm24.75 kg/100m10700 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
