Technical rope data

LUPES® ULTRA LITE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter6–14 mm
Weight2.35–11.7 kg/100m
Breaking load900–4540 kgf
Material
HT Polyester Fiber
Construction
16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

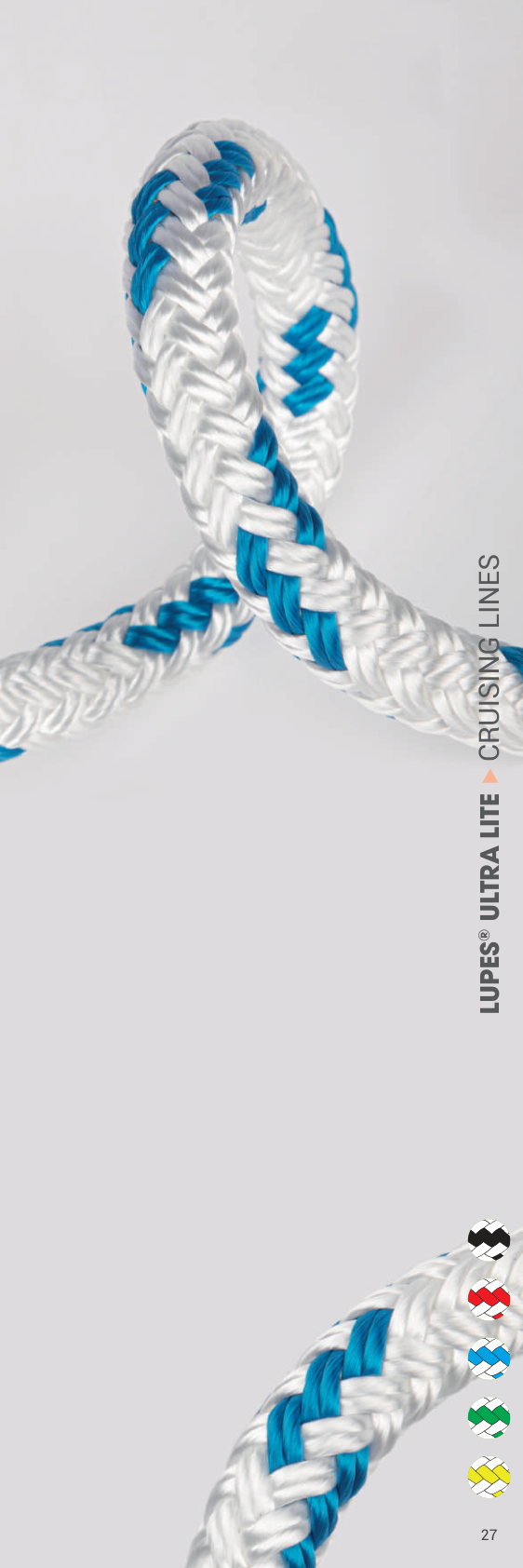

LUPES® ULTRA LITE catalogue product image

Applications

Applications

Main SheetGenoa SheetSpi SheetSpi GuysSpi Pole UphaulGenova Car TravellerMain Car Traveller

Benefits

Benefits

Easy to SpliceCost-EfficientDurableVery Long Service LifeOutstanding Flexibility

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 29

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<6%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Cover: HT Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 16 Plaited Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm2.35 kg/100m900 kgf
8 mm4.5 kg/100m1635 kgf
10 mm6.8 kg/100m2120 kgf
12 mm8.7 kg/100m3450 kgf
14 mm11.7 kg/100m4540 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
