IMEX

Technical rope data

LUPES® VIPERA

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–72 mm
Weight4.85–413 kg/100m
Breaking load1320–102000 kgf
Material
100% HT Polyester Fiber
Construction
16-20-24-32 Plaited / 12-16 Plaited
Source catalogues
Commercial Marine

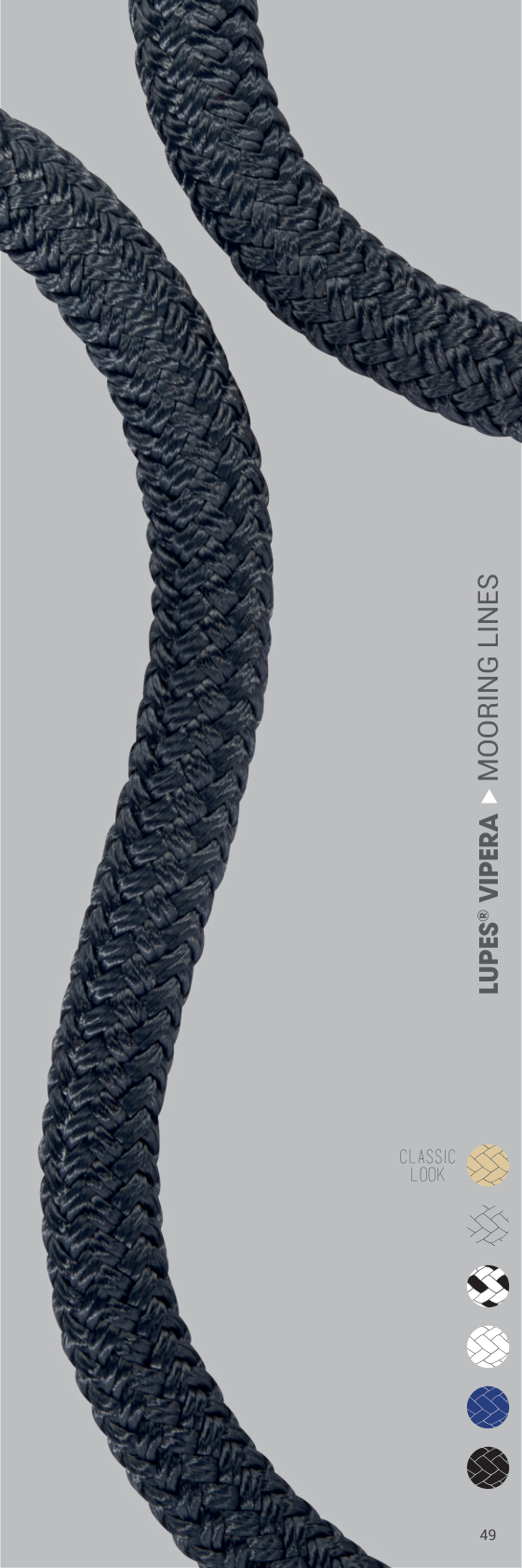

LUPES® VIPERA catalogue product image

Applications

Applications

Dock LineAnchor LineTowing LineSecondary Mooring LineGeneral Working LineTug Shock LineTrawl/Bridle Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverHigh Breaking LoadExcellent Abrasion ResistanceSuperior Chafe Cover

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 28

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Elongation at Break
Approx. %15
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Standard
EN ISO 10547
Length
100-200 m Wooden Spool or Coil
Availability Note
Other Colours & Larger Diameters Upon Request
Material
100% HT Polyester Fiber
Construction
Cover: 16-20-24-32 Plaited Core: 12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm4.85 kg/100m1320 kgf
10 mm7.45 kg/100m2050 kgf
12 mm11 kg/100m2900 kgf
14 mm14.8 kg/100m3910 kgf
16 mm19.4 kg/100m5070 kgf
18 mm24.8 kg/100m6370 kgf
20 mm30.4 kg/100m7800 kgf
22 mm36.85 kg/100m9380 kgf
24 mm43.65 kg/100m11110 kgf
26 mm51.25 kg/100m14385 kgf
28 mm59.4 kg/100m16630 kgf
30 mm71.7 kg/100m18972 kgf
32 mm81.6 kg/100m21420 kgf
36 mm103 kg/100m26928 kgf
40 mm128 kg/100m33048 kgf
44 mm154 kg/100m39678 kgf
48 mm184 kg/100m46920 kgf
52 mm216 kg/100m54774 kgf
56 mm250 kg/100m63036 kgf
60 mm287 kg/100m72114 kgf
64 mm326 kg/100m81600 kgf
72 mm413 kg/100m102000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
