Technical rope data

LUPES® VIPERA GR/S

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter26–72 mm
Weight—
Breaking load20710–146880 kgf
Material
100% HT Polyester Fiber
Construction
24-32 Plaited / 12-16 Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

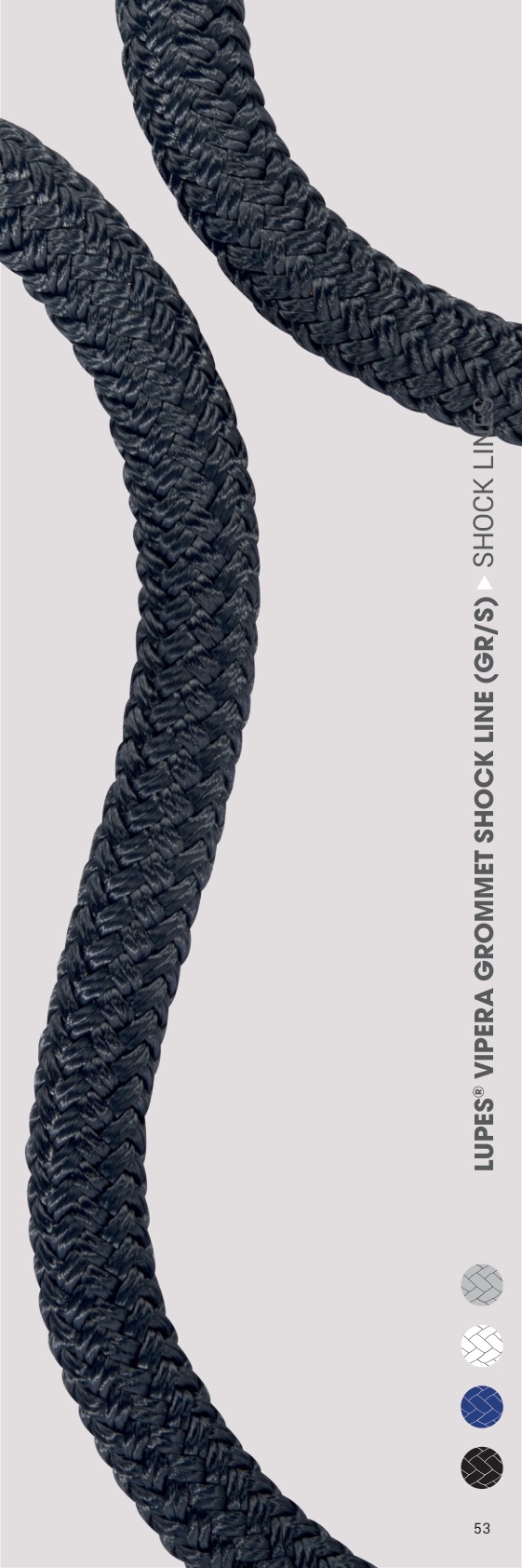

LUPES® VIPERA GR/S catalogue product image

Applications

Applications

Vessel PendantTug Shock LineEye Protection

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverHigh Breaking LoadExcellent Abrasion ResistanceEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 55

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Elongation at Break
Approx. %15
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good Standart : EN ISO 10547
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyester Fiber
Construction
Cover: 24-32 Plaited Core: 12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
26 mm——20710 kgf
28 mm——23941 kgf
30 mm——27320 kgf
32 mm——30845 kgf
36 mm——38776 kgf
40 mm——47589 kgf
44 mm——57136 kgf
48 mm——67565 kgf
52 mm——78875 kgf
56 mm——90772 kgf
60 mm——103844 kgf
64 mm——117504 kgf
72 mm——146880 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
