Technical rope data

LUPES® VIPERA PREMIER

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter30–56 mm
Weight68.35–238.1 kg/100m
Breaking load19000–63000 kgf
Material
100% HT Polyester Fiber
Construction
32 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

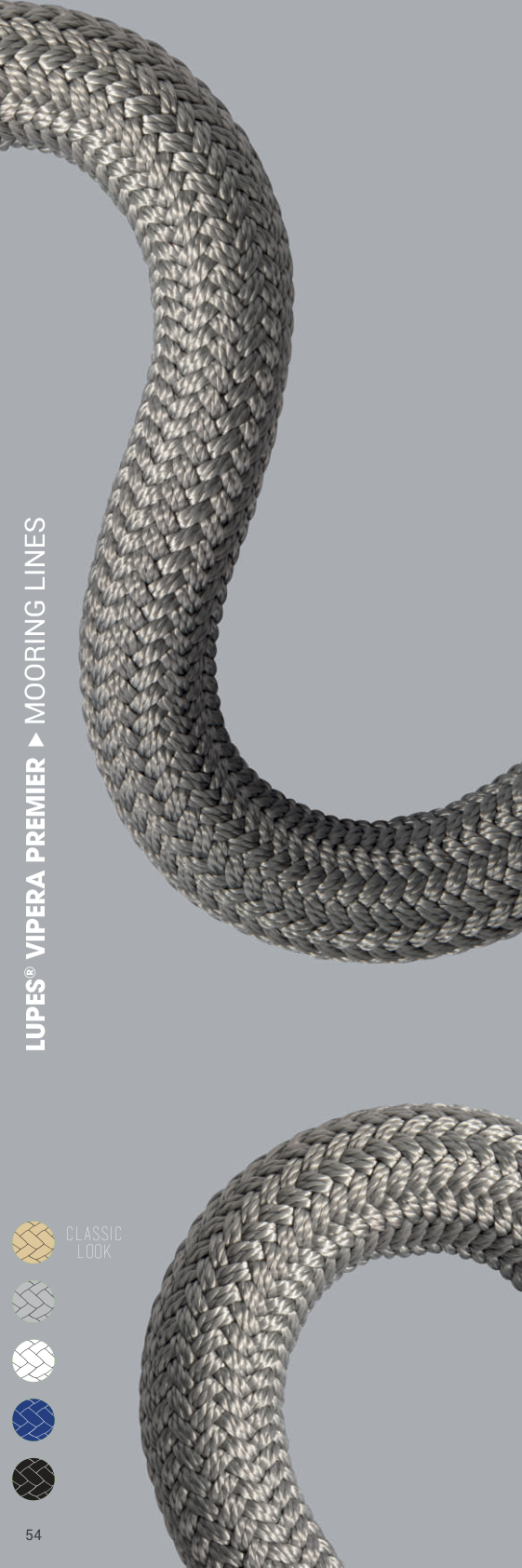

LUPES® VIPERA PREMIER catalogue product image

Applications

Applications

Dock LineAnchor LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableSuperior Chafe CoverHigh Breaking LoadExcellent Abrasion Resistance

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 56

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
Approx. %15
Length
100-200 m Wooden Spool or Coil
Material
100% HT Polyester Fiber
Construction
Cover: 32 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
30 mm68.35 kg/100m19000 kgf
32 mm77.9 kg/100m21500 kgf
34 mm89.05 kg/100m24250 kgf
36 mm99.6 kg/100m27000 kgf
38 mm109.45 kg/100m30000 kgf
40 mm123.4 kg/100m33000 kgf
42 mm133.6 kg/100m36500 kgf
44 mm146.35 kg/100m40000 kgf
46 mm162.65 kg/100m43500 kgf
48 mm177.35 kg/100m47000 kgf
56 mm238.1 kg/100m63000 kgf
