Technical rope data

LUPES® VIPERA SL/S

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter32–72 mm
Weight81.6–413 kg/100m
Breaking load19278–102000 kgf
Material
100% HT Polyester Fiber
Construction
24-32 Plaited / 12-16 Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

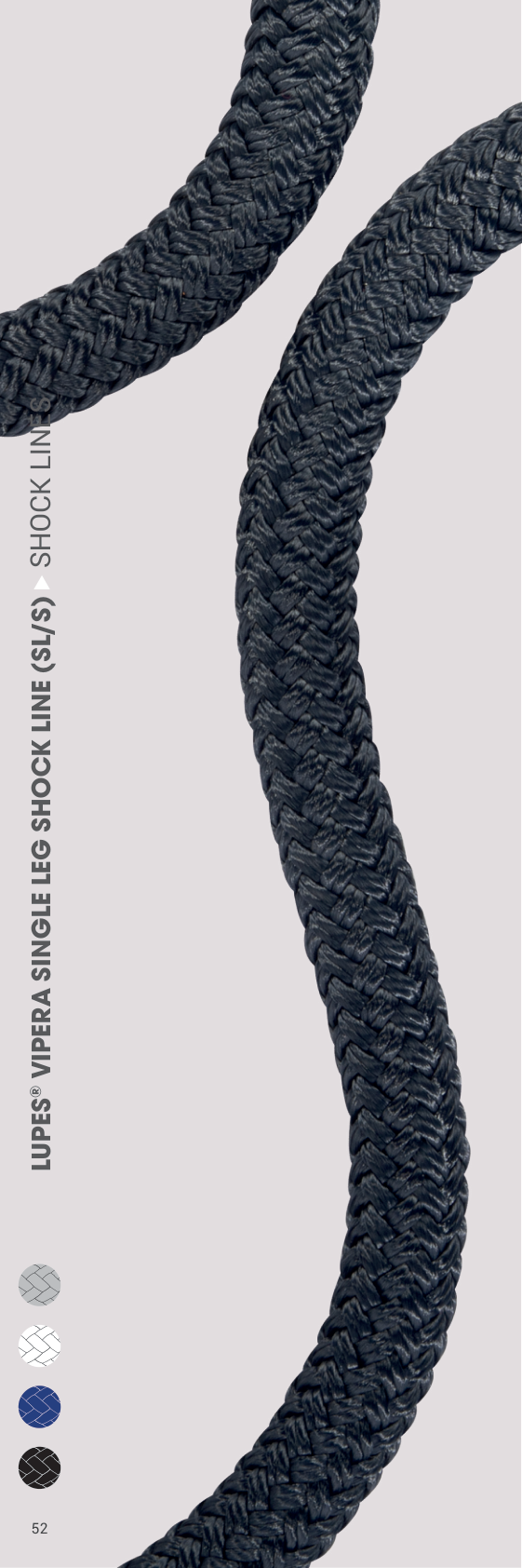

LUPES® VIPERA SL/S catalogue product image

Applications

Applications

Vessel PendantTug Shock LineEye Protection

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverHigh Breaking LoadExcellent Abrasion ResistanceEye Protection

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 54

Specific Gravity
1,38 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Elongation at Break
Approx. %15
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Good
Dry Abrasion
Good Standart : EN ISO 10547
Length
Upon Request
Availability Note
Other Colours on Request
Material
100% HT Polyester Fiber
Construction
Cover: 24-32 Plaited Core: 12-16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
32 mm81.6 kg/100m21420 kgf19278 kgf
36 mm103 kg/100m26928 kgf24235 kgf
40 mm128 kg/100m33048 kgf29743 kgf
44 mm154 kg/100m39678 kgf35710 kgf
48 mm184 kg/100m46920 kgf42228 kgf
52 mm216 kg/100m54774 kgf49297 kgf
56 mm250 kg/100m63036 kgf56732 kgf
60 mm287 kg/100m72114 kgf64903 kgf
64 mm326 kg/100m81600 kgf73440 kgf
72 mm413 kg/100m102000 kgf91800 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
