Technical rope data

LUPES® WAX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter9–12 mm
Weight7.5–12.7 kg/100m
Breaking load1820–3270 kgf
Material
HT Waxed Polyester Fiber; HT Polyester Fiber
Construction
16 Plaited : / 16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

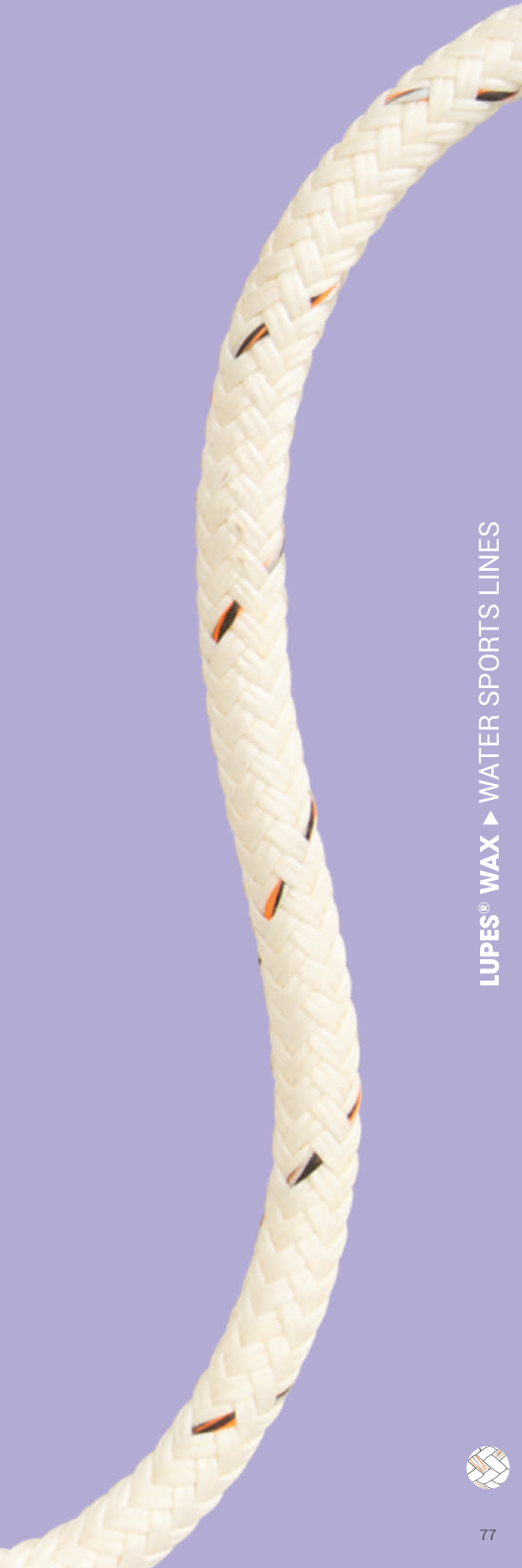

LUPES® WAX catalogue product image

Applications

Applications

Parasailing Line

Benefits

Benefits

Outstanding FlexibilityHigh Breaking LoadEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 79

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256oC
Critical Temperature
170oC
Working Stretch
<6%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Excellent
Length
100-200 m Plastic Spool
Material
Cover: HT Waxed Polyester Fiber Core: HT Polyester Fiber
Construction
Cover: 16 Plaited : Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
9 mm7.5 kg/100m1820 kgf
10 mm9.05 kg/100m2330 kgf
11 mm10.7 kg/100m2630 kgf
12 mm12.7 kg/100m3270 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
