Technical rope data

LUPP® CORD

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter4–6 mm
Weight0.7–1.6 kg/100m
Breaking load250–550 kgf
Material
HT Polypropylene Fiber
Construction
16 Plaited / Parallel Braided
Source catalogues
Leisure Marine
Related markets
Leisure Marine

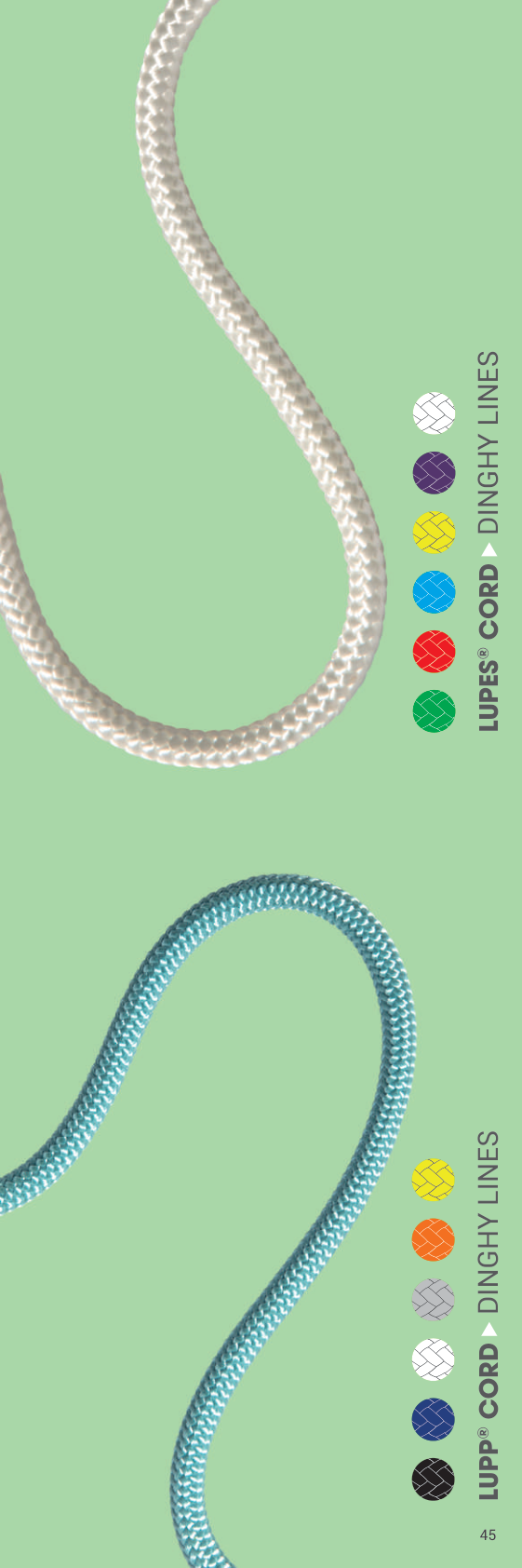

LUPP® CORD catalogue product image

Applications

Applications

Control Line

Benefits

Benefits

Outstanding FlexibilityEconomically PricedLow StretchBuoyant

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 47

Specific Gravity
0,91 kg/dm³
UV Resistance
Sufficient
Chemical Resistance
Very Good
Melting Point
165oC
Critical Temperature
80oC
Working Stretch
<6%
Fiber Water Absorption
None
Wet Abrasion
Sufficient
Length
100-200 m Plastic Spool
Material
Cover: HT Polypropylene Fiber Core: HT Polypropylene Fiber
Construction
Cover: 16 Plaited, Core: Parallel Braided

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
4 mm0.7 kg/100m250 kgf
5 mm1.2 kg/100m400 kgf
6 mm1.6 kg/100m550 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
