IMEX

Technical rope data

LUPP® ROUND

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter18–96 mm
Weight16.7–417 kg/100m
Breaking load6000–120000 kgf
Material
100% HT Polypropylene Fiber
Construction
12 Strand Plaited
Source catalogues
Leisure Marine

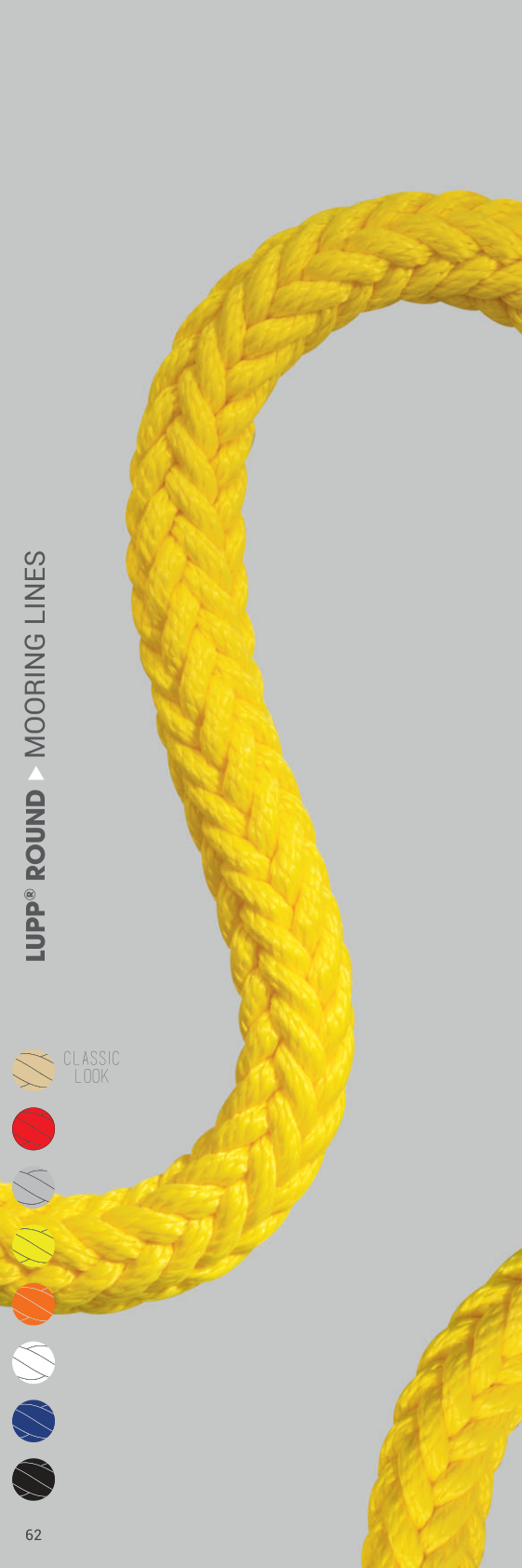

LUPP® ROUND catalogue product image

Applications

Applications

Dock LineTowing LineSecondary Mooring Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandEconomically PricedBuoyantEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 64

Specific Gravity
0,91 kg/dm3
UV Resistance
Sufficient
Chemical Resistance
Very Good
Melting Point
165oC
Critical Temperature
80oC
Fiber Water Absorption
None
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Elongation at Break
Approx. %23
Standard
EN ISO 1346
Length
100-200 m Wooden Spool or Coil
Type
T
Material
100% HT Polypropylene Fiber
Construction
12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
18 mm16.7 kg/100m6000 kgf
20 mm18.1 kg/100m6500 kgf
22 mm21.9 kg/100m7740 kgf
24 mm26 kg/100m9060 kgf
26 mm30.8 kg/100m10500 kgf
28 mm35.4 kg/100m12900 kgf
30 mm40.7 kg/100m14600 kgf
32 mm46.3 kg/100m16400 kgf
34 mm52.4 kg/100m18250 kgf
36 mm58.6 kg/100m20100 kgf
38 mm65.4 kg/100m22200 kgf
40 mm72.3 kg/100m24300 kgf
42 mm79.9 kg/100m26650 kgf
44 mm87.5 kg/100m29000 kgf
46 mm95.7 kg/100m31350 kgf
48 mm104 kg/100m33700 kgf
52 mm122.2 kg/100m39150 kgf
56 mm142 kg/100m44600 kgf
60 mm163 kg/100m50700 kgf
64 mm185 kg/100m56800 kgf
72 mm234 kg/100m70200 kgf
80 mm289 kg/100m86000 kgf
88 mm350 kg/100m102000 kgf
96 mm417 kg/100m120000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
