IMEX

Technical rope data

LUPP® SQUARE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter12–56 mm
Weight6.51–142 kg/100m
Breaking load2280–45300 kgf
Material
100% HT Polypropylene Fiber
Construction
8 Strand Plaited (4x2)
Source catalogues
Leisure Marine

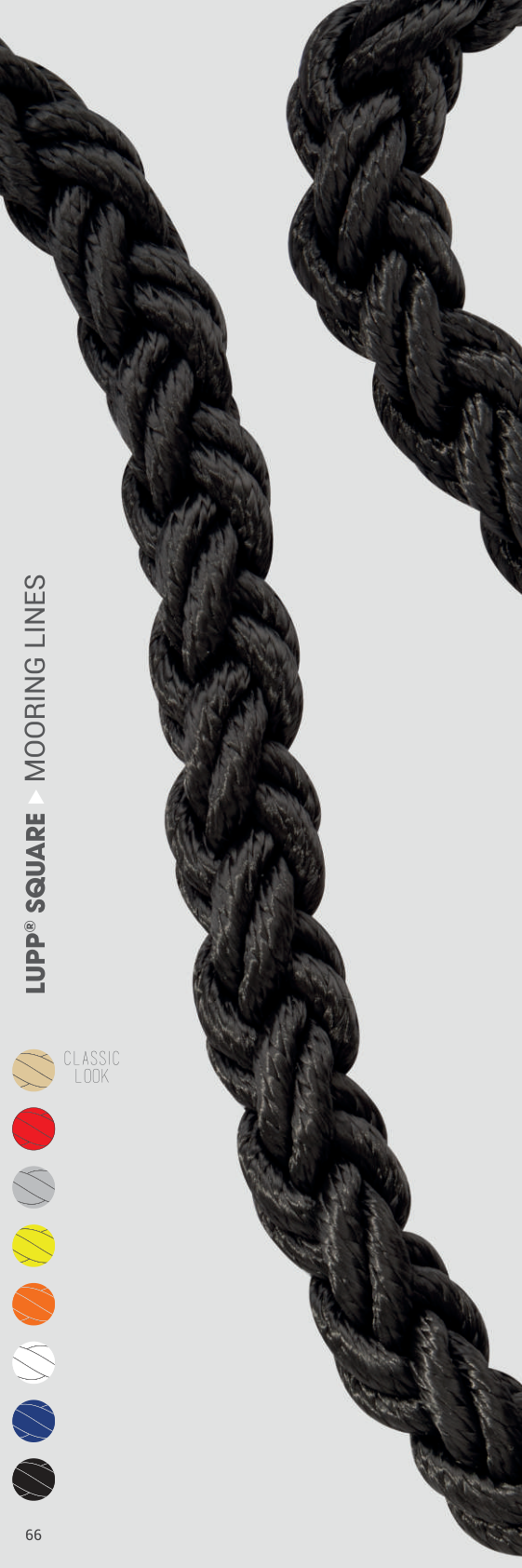

LUPP® SQUARE catalogue product image

Applications

Applications

Dock LineTowing LineSecondary Mooring LineOther Fishing Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandEconomically PricedBuoyantEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 68

Specific Gravity
0,91 kg/dm3
UV Resistance
Sufficient
Chemical Resistance
Very Good
Melting Point
165oC
Critical Temperature
80oC
Fiber Water Absorption
None
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Elongation at Break
Approx. %23
Standard
EN ISO 1346
Length
100-200 m Plastic/Wooden Spool or Coil
Type
L
Material
100% HT Polypropylene Fiber
Construction
8 Strand Plaited (4x2)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
12 mm6.51 kg/100m2280 kgf
14 mm8.86 kg/100m3225 kgf
16 mm11.6 kg/100m4310 kgf
18 mm14.6 kg/100m5350 kgf
20 mm18.1 kg/100m6500 kgf
22 mm21.9 kg/100m7740 kgf
24 mm26 kg/100m9060 kgf
26 mm30.8 kg/100m10500 kgf
28 mm35.4 kg/100m12900 kgf
30 mm40.7 kg/100m14600 kgf
32 mm46.3 kg/100m16400 kgf
34 mm52.4 kg/100m18250 kgf
36 mm58.6 kg/100m20100 kgf
38 mm65.4 kg/100m22200 kgf
40 mm72.3 kg/100m24300 kgf
44 mm87.5 kg/100m29150 kgf
48 mm104 kg/100m34100 kgf
52 mm122 kg/100m39400 kgf
56 mm142 kg/100m45300 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
