IMEX

Technical rope data

LUPP® SQUARE FILM

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter40–96 mm
Weight72–417 kg/100m
Breaking load28500–156884 kgf
Material
100% HT Polyolefin Film Fiber
Construction
8 Strand Plaited (4x2)
Source catalogues
Commercial Marine
Related markets
Commercial Marine

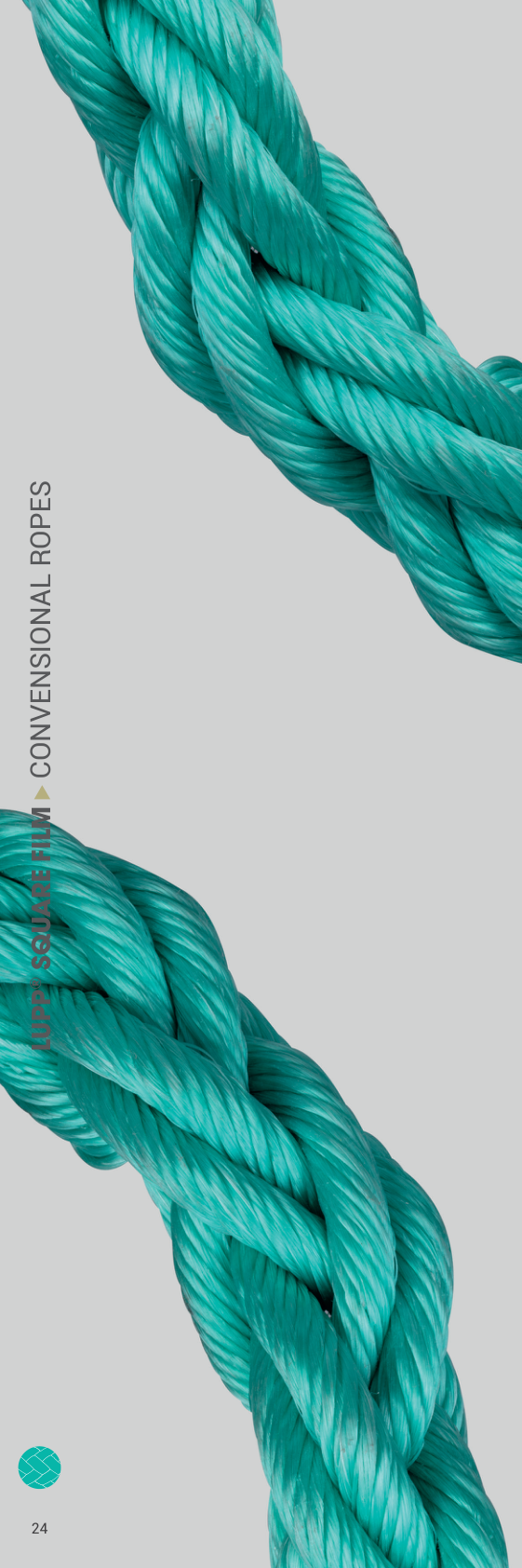

LUPP® SQUARE FILM catalogue product image

Applications

Applications

Vessel Primary Mooring LineSecondary Mooring LineGeneral Working LineTug Barge Tie-Up LineTug Barge H-Bitt Working LineTrawl/Bridle LineOther Fishing LineETS Rope

Benefits

Benefits

Excellent GripModerate ElongationBuoyantEconomically PricedDoes not KinkEasy to Splice%25-30 More Strength than NormalPP Ropes

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 26

Type
L
Specific Gravity
0,94 kg/dm³
UV Resistance
Sufficient
Chemical Resistance
Very Good
Melting Point
165°C
Critical Temperature
80°C
Elongation at Break
Approx.23%
Fiber Water Absorption
None
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Standard
EN ISO 10572
Length
200-220 m Coil
Availability Note
Other Colours on Request
Material
100% HT Polyolefin Film Fiber
Construction
8 Strand Plaited (4x2)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
40 mm72 kg/100m28500 kgf
44 mm87.7 kg/100m34013 kgf
48 mm104 kg/100m41500 kgf
52 mm122 kg/100m48291 kgf
56 mm142 kg/100m56000 kgf
60 mm163 kg/100m63518 kgf
64 mm185 kg/100m72200 kgf
72 mm234 kg/100m96500 kgf
80 mm290 kg/100m111500 kgf
88 mm351 kg/100m133352 kgf
96 mm417 kg/100m156884 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
