IMEX

Technical rope data

LUPP® TWIST FILM

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–36 mm
Weight2.89–58.6 kg/100m
Breaking load1040–17350 kgf
Material
100% HT Polypropylene Film Fiber
Construction
3 Strand Plaited
Source catalogues
Commercial Marine
Related markets
Commercial Marine

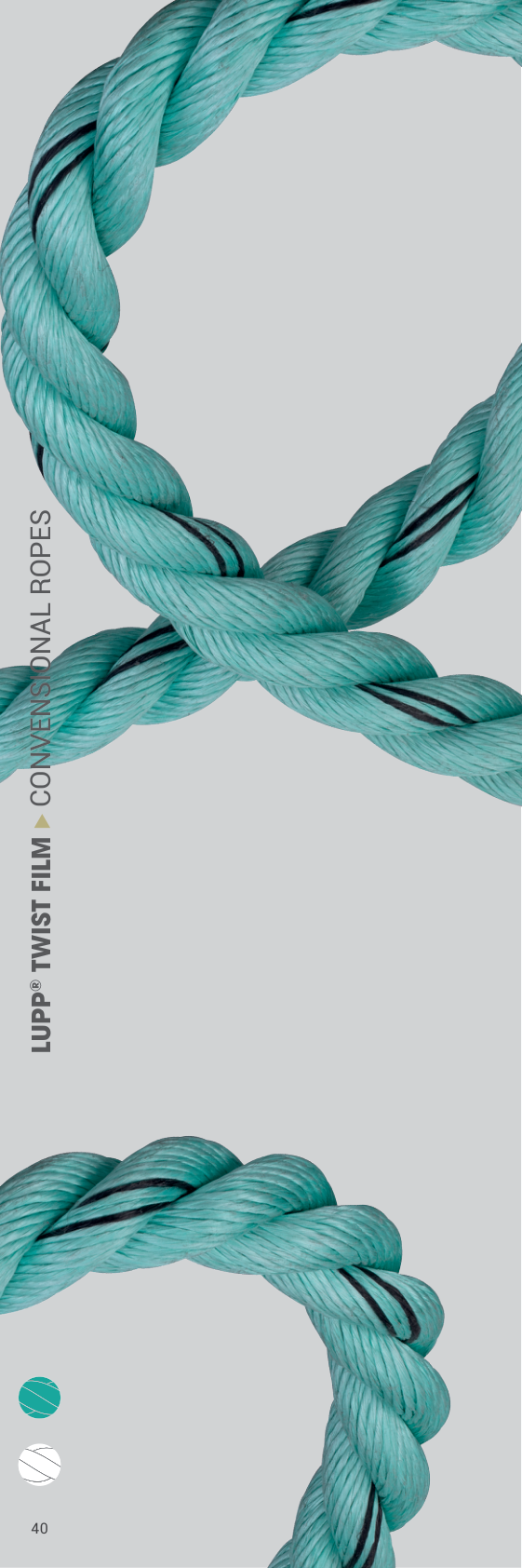

LUPP® TWIST FILM catalogue product image

Applications

Applications

General Working LineTug Barge Tie-Up LineOther Fishing Line

Benefits

Benefits

Does not HardenSoft HandEconomically PricedBuoyantEasy to Splice

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 42

Type
A
Specific Gravity
0,91 kg/dm³
UV Resistance
Sufficient
Chemical Resistance
Very Good
Melting Point
165°C
Critical Temperature
80°C
Elongation at Break
Approx. %23
Fiber Water Absorption
None
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Standard
EN ISO 1346
Length
200-220 m Coil
Availability Note
Other Colours on Request
Material
100% HT Polypropylene Film Fiber
Construction
3 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm2.89 kg/100m1040 kgf
10 mm4.52 kg/100m1530 kgf
12 mm6.51 kg/100m2170 kgf
14 mm8.86 kg/100m2860 kgf
16 mm11.6 kg/100m3850 kgf
18 mm14.6 kg/100m4720 kgf
20 mm18.1 kg/100m5800 kgf
24 mm26 kg/100m8160 kgf
28 mm35.4 kg/100m10820 kgf
32 mm46.3 kg/100m13500 kgf
36 mm58.6 kg/100m17350 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.

View BrochureOpen Rope FinderBrowse all products
