IMEX

Technical rope data

LUPP® VIPERA

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–28 mm
Weight2.9–34.95 kg/100m
Breaking load1000–12000 kgf
Material
100% HT Polypropylene Fiber
Construction
16-20-24 Plaited / 16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

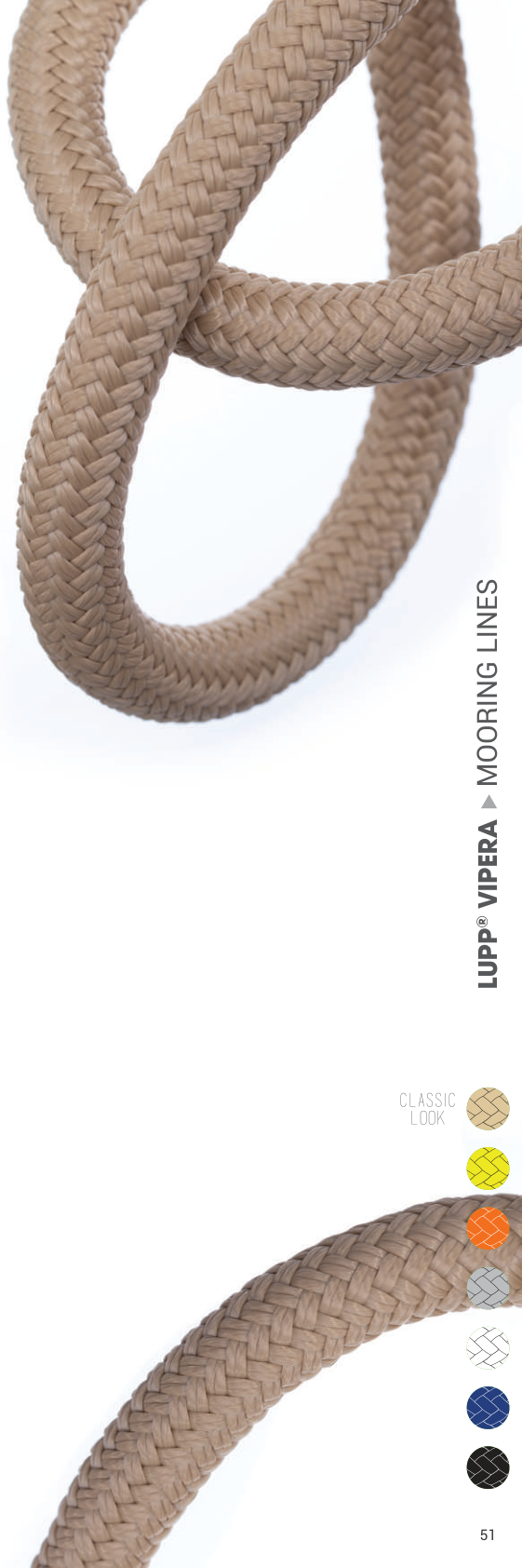

LUPP® VIPERA catalogue product image

Applications

Applications

Dock LineTowing Line

Benefits

Benefits

Does not HardenDoes not KinkSoft HandDurableFlexible CoverEconomically PricedBuoyant

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 53

Specific Gravity
0,91 kg/dm3
UV Resistance
Sufficient
Chemical Resistance
Very Good
Melting Point
165oC
Critical Temperature
80oC
Fiber Water Absorption
None
Wet Abrasion
Sufficient
Dry Abrasion
Sufficient
Elongation at Break
Approx. %23
Length
100-200 m Plastic/Wooden Spool or Coil
Material
100% HT Polypropylene Fiber
Construction
Cover: 16-20-24 Plaited Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm2.9 kg/100m1000 kgf
10 mm4.2 kg/100m1510 kgf
12 mm6.2 kg/100m2100 kgf
14 mm9.1 kg/100m3000 kgf
16 mm10.9 kg/100m4000 kgf
18 mm14.5 kg/100m4975 kgf
20 mm18.15 kg/100m6045 kgf
22 mm21.75 kg/100m7200 kgf
24 mm25.9 kg/100m8425 kgf
26 mm30.35 kg/100m9765 kgf
28 mm34.95 kg/100m12000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
