Technical rope data

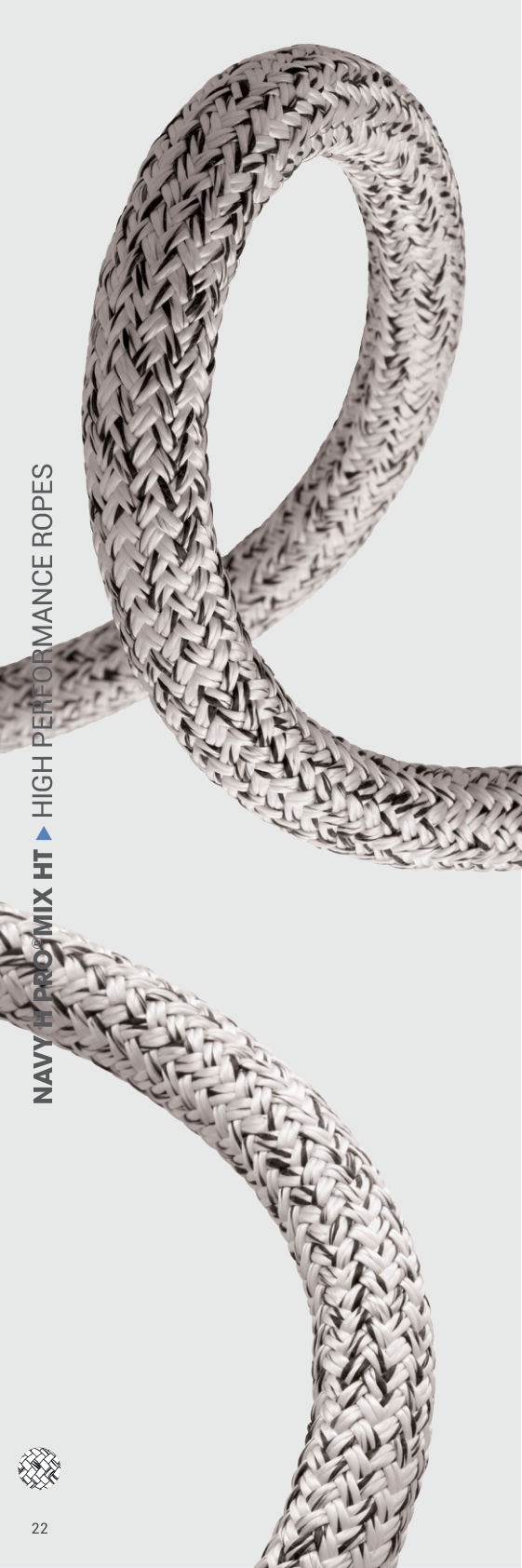

NAVY H PRO® MIX HT

Name: NAVY H PRO® MIX HT
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter20–32 mm

Weight23.4–60.73 kg/100m

Breaking load24890–75060 kgf

Applications

Vessel Primary Mooring LineTug Main Tow LineTug PendantSalvage RopeTrawl/Bridle Line

Benefits

Superior Abrasion ResistanceExcellent Breaking LoadDurableVery Low StretchLightweightDoes not Kink

Source catalogue data

Specific Gravity: 0,99-1,20 kg/dm³
UV Resistance: Good
Chemical Resistance: Excellent
Melting Point: 147°C
Critical Temperature: 65°C
Working Stretch: <1,5%
Fiber Water Absorption: Approx. %0-1
Wet Abrasion: Excellent
Dry Abrasion: Excellent
Standard: EN ISO 10325
Length: Upon Request
Availability Note: Other Colours & Larger Diameters Upon Request
Material: Cover: Blended Technora® Fiber - UHMWPE Fiber Core: Coated UHMWPE Fiber
Construction: Cover: 24-32 Plaited Core: 12 Plaited

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

Diameter	Weight	Breaking load – Unspliced	Breaking load – Spliced
20 mm	23.4 kg/100m	27640 kgf	24890 kgf
22 mm	27.99 kg/100m	34780 kgf	31310 kgf
24 mm	34.21 kg/100m	41000 kgf	36920 kgf
28 mm	45.85 kg/100m	55990 kgf	50400 kgf
32 mm	60.73 kg/100m	75060 kgf	67510 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
