IMEX

Technical rope data

OZARK

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter12.1 mm
Weight10.3 kg/100m
Breaking load3100 kgf
Material
HT Polyamide Fiber
Construction
16 Plaited / Parallel Braided
Source catalogues
Arborist
Related markets
Arborist

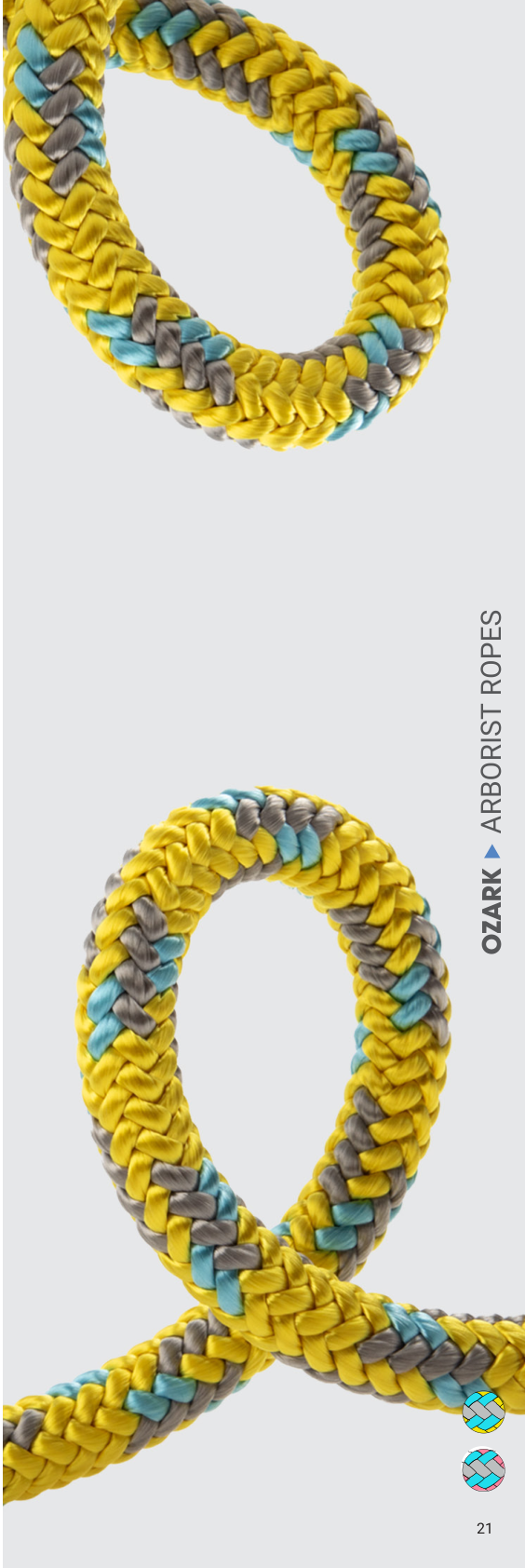

OZARK catalogue product image

Applications

Applications

Tree Climbing Rope

Benefits

Benefits

Easy Handling/FlexibilityMinimum Sheath SlippageGreat Abrasion ResistanceWater & Dirt Resistant (Thermo Protector Process)

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 23

Type
A
Specific Gravity
1,31 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Fiber Water Absorption
Approx. %2-3
Wet Abrasion
Good
Dry Abrasion
Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
12.1 mm10.3 kg/100m3100 kgf

Arborist Ropes 2025 · PDF 23

Diameter (mm)Elongation (50–150 kg) (%)Cover (%)
12.12.467

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
