Technical rope data

PINE FLEX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–30 mm
Weight4.8–81.8 kg/100m
Breaking load1900–25300 kgf
Material
100% HT Coated Polyester Fiber
Construction
12 Strand Braided
Source catalogues
Arborist
Related markets
Arborist

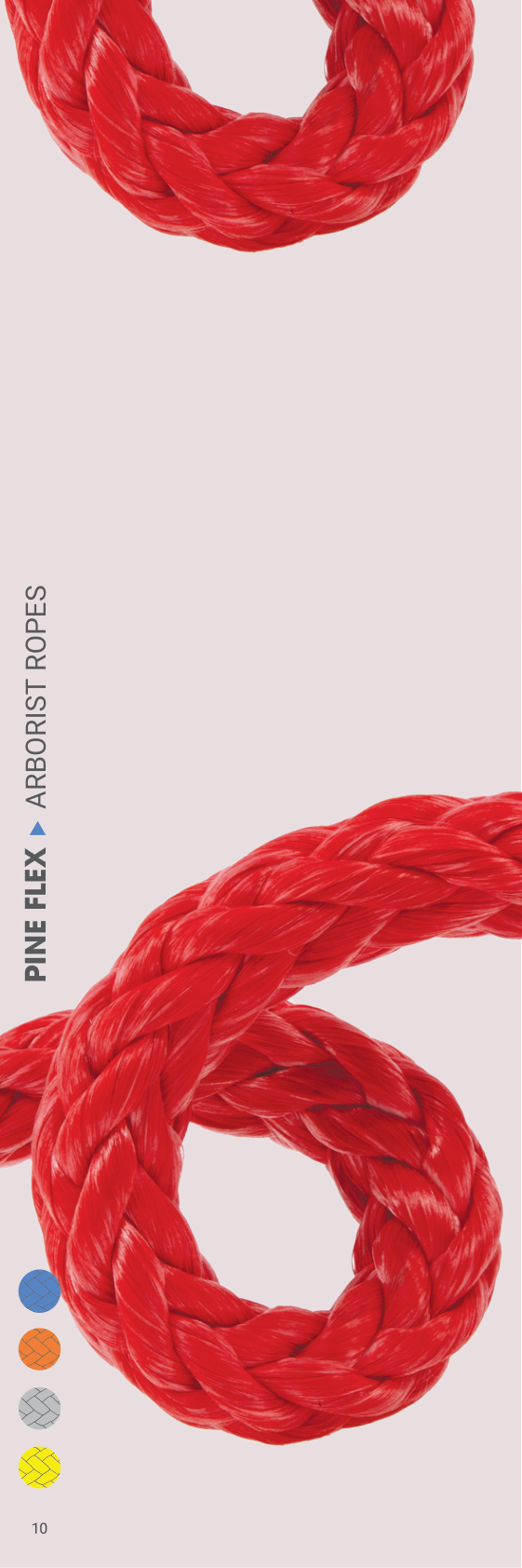

PINE FLEX catalogue product image

Applications

Applications

Rigging Line

Benefits

Benefits

Easy to SpliceGood GripSnag ResistantEasy to Inspect

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 12

Specific Gravity
1,38 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
256°C
Critical Temperature
170°C
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Very Good
Dry Abrasion
Very Good
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm4.8 kg/100m1900 kgf
9 mm6.4 kg/100m2500 kgf
11 mm9.7 kg/100m3900 kgf
12 mm13.7 kg/100m5300 kgf
16 mm22 kg/100m7700 kgf
18 mm26.3 kg/100m10100 kgf
22 mm39.7 kg/100m14000 kgf
24 mm51.6 kg/100m18200 kgf
30 mm81.8 kg/100m25300 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
