IMEX

Technical rope data

STORM H PRO® MIX TP

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–10 mm
Weight4.35–6.5 kg/100m
Breaking load3600–5650 kgf
Material
50% Technora® Fiber + 50% HT Polyester Fiber; Coated UHMWPE Fiber
Construction
24 Plaited / 12 Plaited
Source catalogues
Arborist
Related markets
Arborist

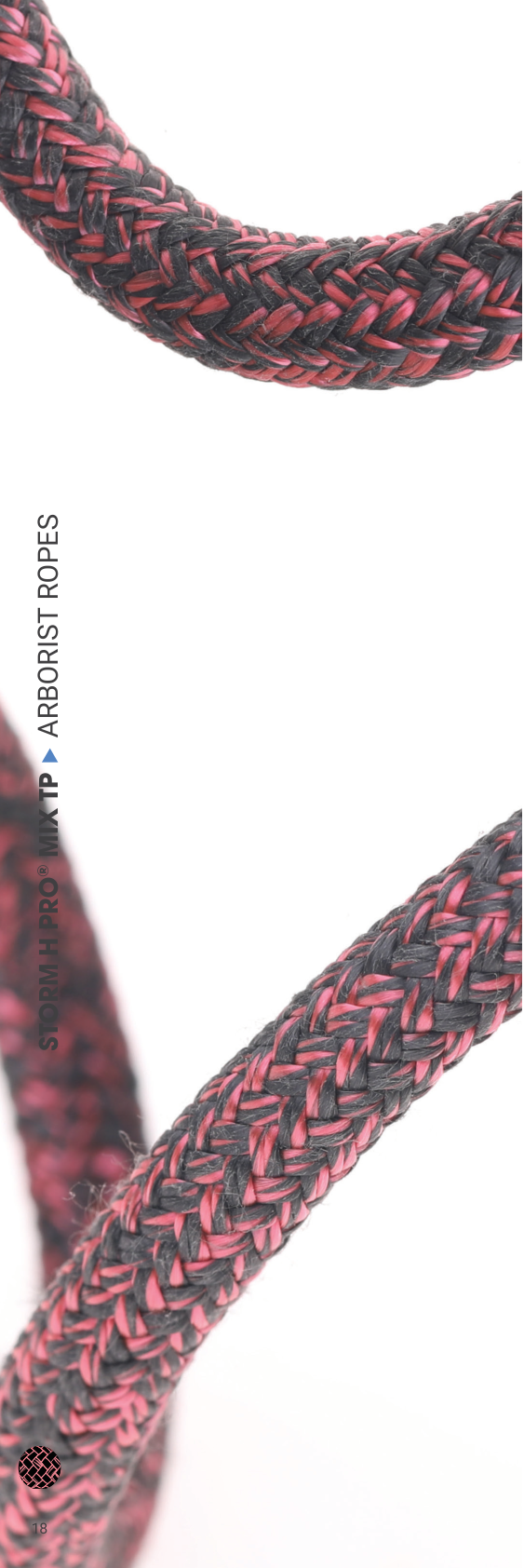

STORM H PRO® MIX TP catalogue product image

Applications

Applications

Hitch CordAccessory Cord

Benefits

Benefits

Excellent Breaking LoadVery Good Heat ResistanceLow StretchEasy to Splice

Source catalogue data

Technical rope data

Arborist Ropes 2025 · PDF 20

Specific Gravity
0,99-1,20 kg/dm3
UV Resistance
Sufficient
Chemical Resistance
Excellent
Melting Point
147-256°C
Critical Temperature
65°C
Working Stretch
<1,5%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Length
91 M-100 M-183 M-200 M Orange Spool
Availability Note
Other Colours on Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm4.35 kg/100m3600 kgf
10 mm6.5 kg/100m5650 kgf

Arborist Ropes 2025 · PDF 20

Diameter (mm)Cover (%)
859
1056

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
