Technical rope data

TANKER SQUARE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter40–96 mm
Weight84.09090909–510 kg/100m
Breaking load30700–181406 kgf
Material
100% HT Polyolefin & Polyester Mix Fiber
Construction
8 Strand Plaited (4x2)
Source catalogues
Commercial Marine
Related markets
Commercial Marine

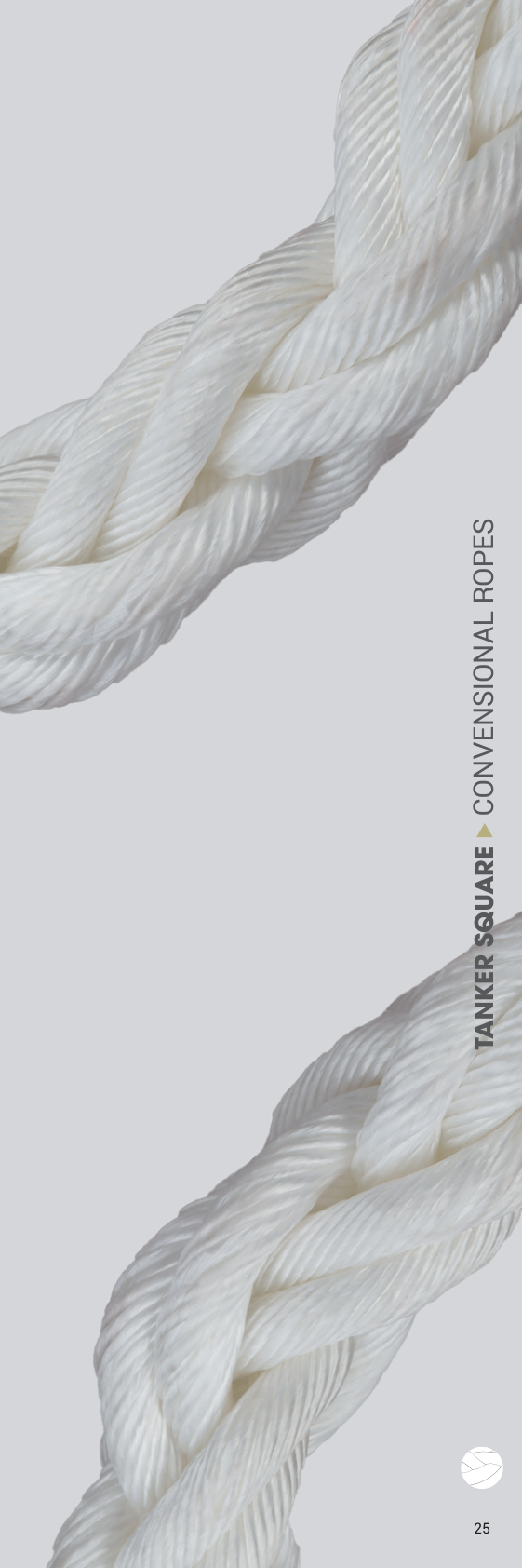

TANKER SQUARE catalogue product image

Applications

Applications

Vessel Primary Mooring LineSecondary Mooring LineGeneral Working LineTug Barge Tie-Up LineTug H-Bitt Working LineTrawl/Bridle Line

Benefits

Benefits

Good Breaking LoadGood Shock AbsorptionDoes not KinkEasy to SpliceDurableFlexibleGeneral Accordance with OCIMF Guideline

Source catalogue data

Technical rope data

Commercial Marine Ropes 2024 · PDF 27

Type
L
Specific Gravity
1,10 kg/dm³
UV Resistance
Good
Chemical Resistance
Very Good
Melting Point
165°C
Critical Temperature
80°C
Elongation at Break
Approx.19%
Fiber Water Absorption
0,15%
Wet Abrasion
Good
Dry Abrasion
Good
Standard
ISO 10556
Length
200-220 m Coil
Availability Note
Other Colours on Request
Material
100% HT Polyolefin & Polyester Mix Fiber
Construction
8 Strand Plaited (4x2)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
40 mm84.09090909 kg/100m30700 kgf
44 mm107 kg/100m36840 kgf
48 mm128.1818182 kg/100m47200 kgf
52 mm150 kg/100m55028 kgf
56 mm171.8181818 kg/100m64100 kgf
60 mm199 kg/100m73190 kgf
64 mm225 kg/100m84100 kgf
72 mm285 kg/100m103800 kgf
80 mm352.2727273 kg/100m127700 kgf
88 mm428 kg/100m153956 kgf
96 mm510 kg/100m181406 kgf
