Tender Towing System 2026 · PDF 14
- Type
- Snap Shackle
- Material
- 17-4 PH stainless steel
Technical rope data

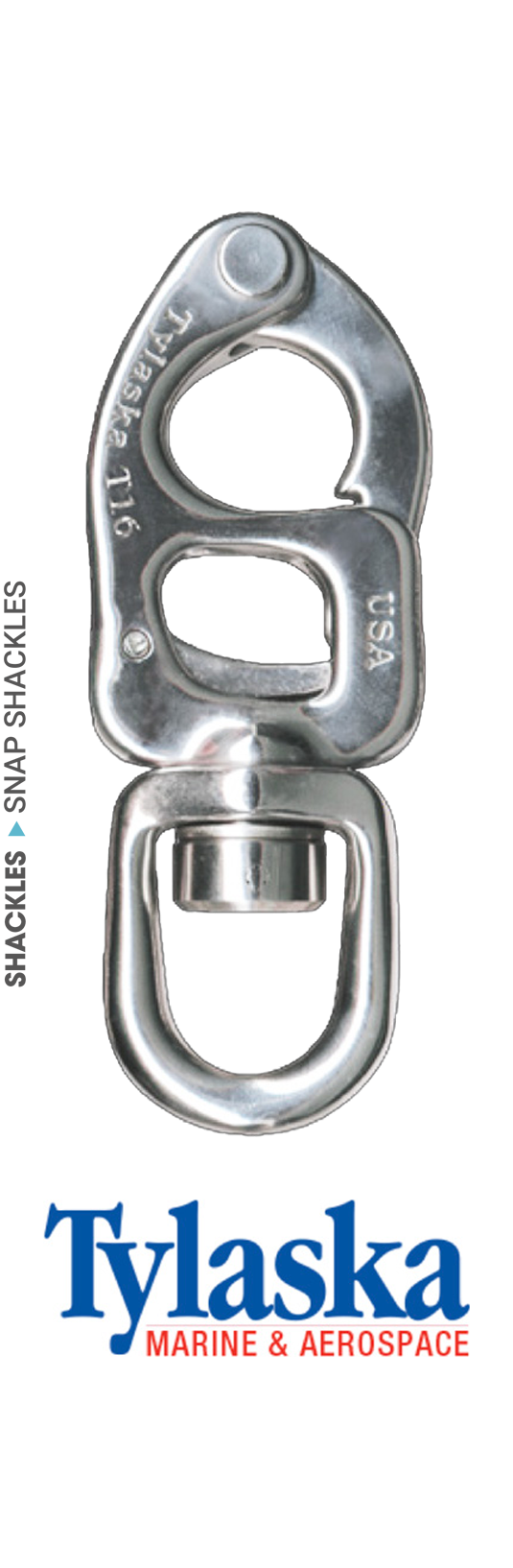

TYLASKA TRIGGER SNAP SHACKLES
Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.
Source catalogue data
Technical rope data
Diameter—
Weight—
Breaking load5440–22680 kgf
- Material
- 17-4 PH stainless steel
- Construction
- —
- Source catalogues
- Tender Towing
- Related markets
- Tender Towing
Applications
Applications
Tender towing system accessory / snap shackle
Benefits
Benefits
High strength 17-4 PH stainless steelHighly corrosion resistantReliable release under low loadsResists accidental release under vibration or shock loads
Source catalogue data
Technical rope data
Technical variants
Catalogue variant data
Compare the catalogue ranges first, then review the exact variants below.
| Diameter | Weight | Breaking load |
|---|---|---|
| — mm | — kg/100m | 13610 kgf |
| — mm | — kg/100m | 18140 kgf |
| — mm | — kg/100m | 22680 kgf |
| — mm | — kg/100m | 5440 kgf |
| — mm | — kg/100m | 7260 kgf |
| — mm | — kg/100m | 9070 kgf |
Tender Towing System 2026 · PDF 14
| Diameter (mm) | Model | Part number | A (mm) | B (mm) | C (mm) | Weight (kg) | WLL (kgf) | Breaking load (kgf) |
|---|---|---|---|---|---|---|---|---|
| — | 30S | TY1030-S | 31.2 | 30.5 | 166 | 0.76 | 6800 | 13610 |
| — | 40S | TY1040-S | 44.5 | 45.5 | 241 | 2.34 | 9070 | 18140 |
| — | 50S | TY1050-S | 49.5 | 50.8 | 294 | 3.2 | 11340 | 22680 |
| — | 12L | TY1012-L | 18 | 28.3 | 117 | 0.23 | 2720 | 5440 |
| — | 16L | TY1016-L | 22.9 | 33.3 | 138 | 0.36 | 3630 | 7260 |
| — | 20L | TY1020-L | 25.1 | 35.3 | 147 | 0.45 | 4540 | 9070 |
Technical values below are taken from the source catalogue data used by ROPE FINDER.
