US TYPE ANCHOR SHACKLES

Name: US TYPE ANCHOR SHACKLES
Brand: Unbranded/Generic

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter—

Weight—

Breaking load1400–220000 kgf

Applications

Overhead LiftingLashingTowing

Benefits

High tensile carbon steel bodyAlloy steel screw pinProof load 2x WLLMinimum Breaking Strength 4x or 6x WLL depending on surface finish

Source catalogue data

Type: Anchor Shackle
Standard: U.S. Federal Specification RR-C-271D / ASME B30.26
Availability Note: Larger Diameters Upon Request
Material: Body Carbon Steel C1045(#45) / Pin Alloy Steel
Surface: Electric galvanized / Hot-dipped galvanized
Proof load: 2 × WLL
Minimum breaking load: 6 × WLL (zinc galvanized); 4 × WLL (hot-dipped galvanized)

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

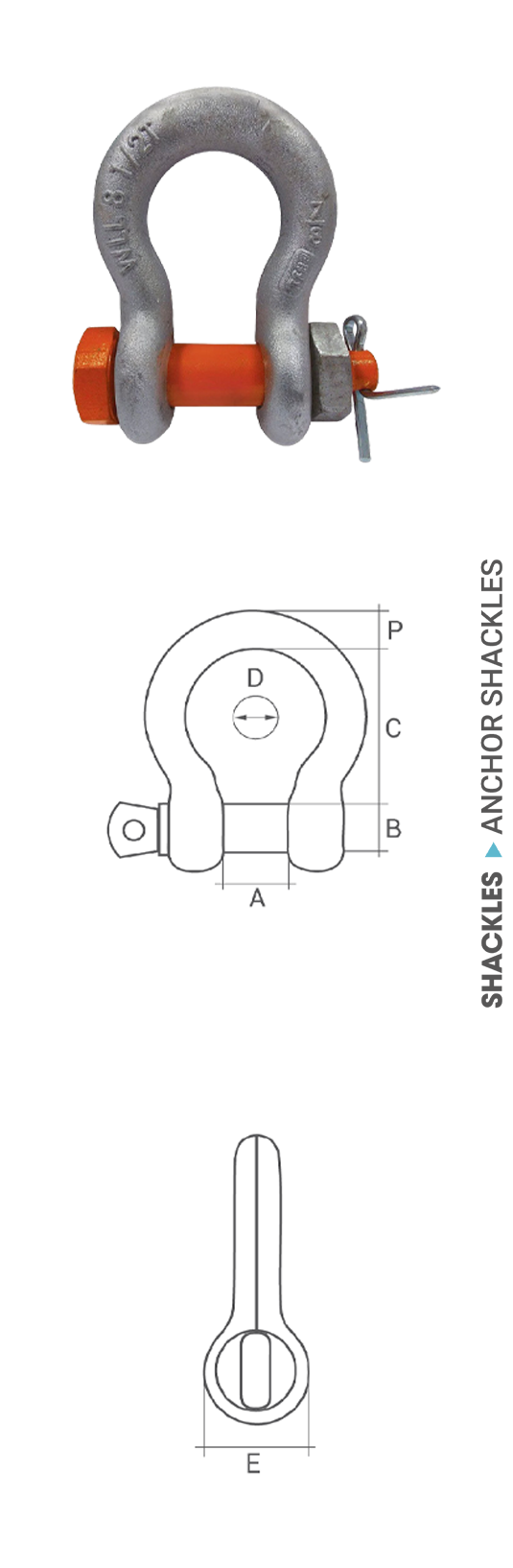

Diameter (mm)	Nominal size (inch)	Nominal size (mm)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	Weight (kg)	WLL (kgf)	Breaking load (kgf)
—	1-3/4"	44	73	41.4	177.8	127	106	12.6	25000	100000
—	5/8"	16	26.9	16	60.5	42.9	38.1	0.62	3250	13000
—	3/16"	5	9.65	6.35	22.4	15.2	14.2	0.03	350	1400
—	2"	50	82.5	51	196.8	146	122	20.4	35000	140000
—	3/4"	19	31.8	19.1	71.4	51	46	1.07	4750	19000
—	1/4"	6	11.9	7.85	28.7	19.8	15.5	0.05	500	2000
—	2-1/2"	64	105	57	266.7	184	145	38.9	55000	220000
—	7/8"	22	36.6	22.4	84.1	58	53	1.64	6500	26000
—	5/16"	8	13.5	9.65	31	21.3	19.1	0.09	750	3000
—	1"	25	42.9	25.4	95.3	68.5	60.5	2.38	8500	34000
—	1-1/8"	28	46	28.7	107.9	74	68.5	3.36	9500	38000
—	3/8"	10	16.8	11.2	36.6	26.2	23.1	0.14	1000	4000
—	1-1/4"	31	51.5	31.8	119.1	92.5	76	4.31	12000	48000
—	1-3/8"	32	57	35.1	133.3	92	84	6.14	13500	54000
—	7/16"	12	19.1	12.7	42.9	29.5	26.9	0.17	1500	6000
—	1-1/2"	38	60.5	38.1	146	98.5	92	7.8	17000	68000
—	1/2"	13	20.6	12.7	47.8	33.3	30.2	0.33	2000	8000

Technical values below are taken from the source catalogue data used by ROPE FINDER.
