IMEX

Technical rope data

VECT K®

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter3–24 mm
Weight0.6–42.9 kg/100m
Breaking load720–45350 kgf
Material
Coated Vectran® Fiber
Construction
12 Strand Braided
Source catalogues
Leisure Marine
Related markets
Leisure Marine

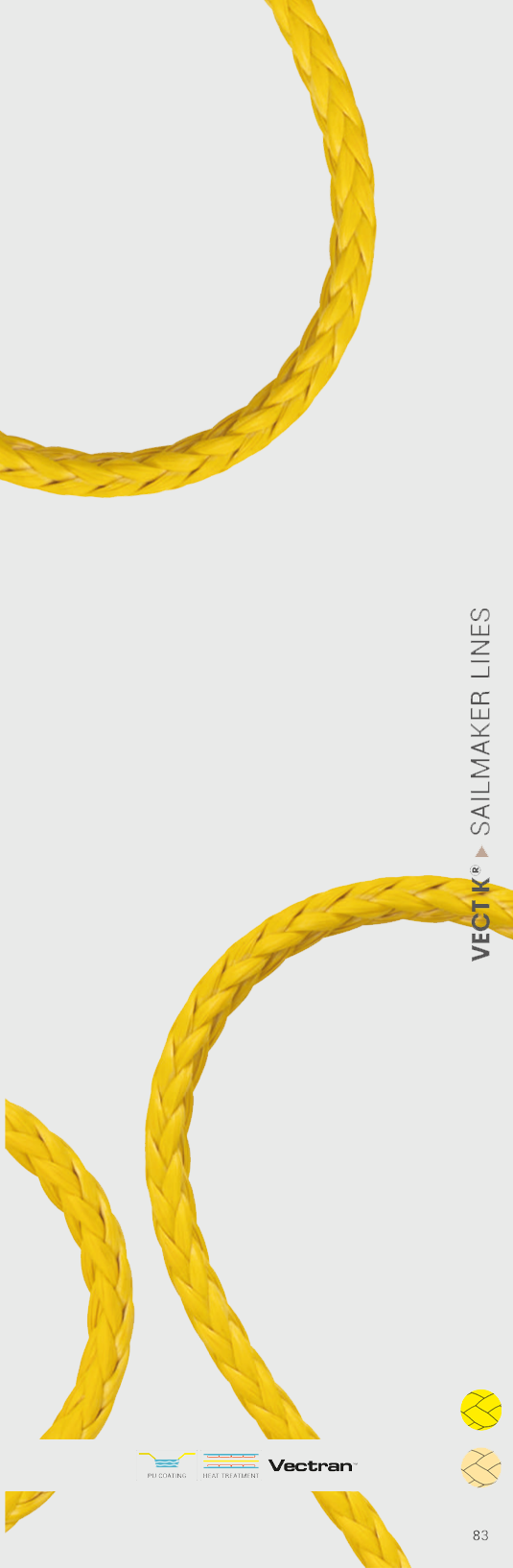

VECT K® catalogue product image

Applications

Applications

Spi Pole UphaulSpi Pole ForeguyVangCunninghamMain OuthaulLeech Line

Benefits

Benefits

No Creep Under Constant LoadsHigh Breaking LoadExtremely Low StretchIdeal for Steering SystemEasy to SplicePerfect for Static ApplicationPu Coating for Better Abrasion ResistancePerfect for Static Applications

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 15

Specific Gravity
1,40 kg/dm3
UV Resistance
Poor
Chemical Resistance
Excellent
Melting Point
300oC
Critical Temperature
200oC
Working Stretch
<1%
Fiber Water Absorption
Approx. %1
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Coated Vectran® Fiber
Construction
12 Strand Braided

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.6 kg/100m720 kgf
4 mm1.2 kg/100m1430 kgf
5 mm2.1 kg/100m2500 kgf
6 mm3 kg/100m3575 kgf
8 mm5.4 kg/100m6450 kgf
10 mm8.1 kg/100m9700 kgf
12 mm12.9 kg/100m15000 kgf
14 mm15.6 kg/100m17700 kgf
16 mm19.5 kg/100m21825 kgf
18 mm23.4 kg/100m25700 kgf
20 mm31.2 kg/100m33800 kgf
22 mm39 kg/100m41750 kgf
24 mm42.9 kg/100m45350 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
