Technical rope data

DINGHY FLY MIX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter5–8 mm
Weight1.5–3.3 kg/100m
Breaking load590–1450 kgf
Material
Dyneema® SK 78 & HT Polyester & Texturized Polyamide Fiber; HT Polypropylene
Construction
20-24 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

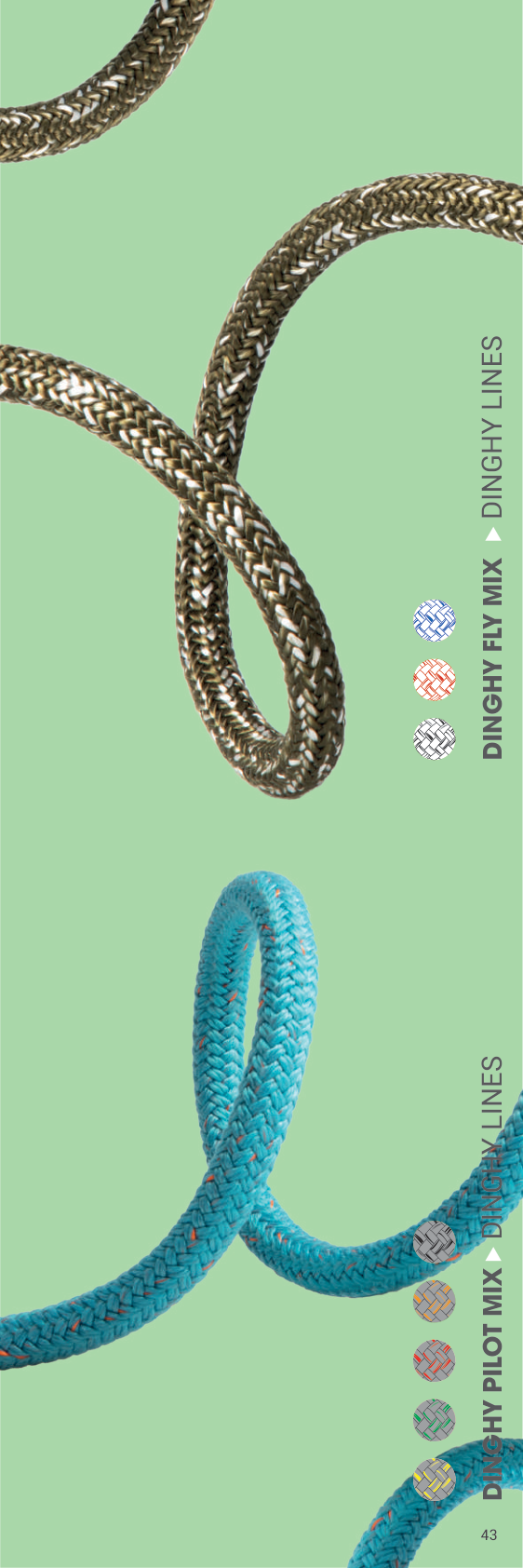

DINGHY FLY MIX catalogue product image

Applications

Applications

Main Sheet

Benefits

Benefits

LightweightVery Good Abrasion ResistanceVery Good GripEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 45

Specific Gravity
1,01-1,03 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
147o-256oC
Critical Temperature
65oC
Working Stretch
<6%
Fiber Water Absorption
Approx. %0-1
Wet Abrasion
Excellent
Length
100-200 m Plastic Spool
Material
Cover: Dyneema® SK 78 & HT Polyester & Texturized Polyamide Fiber Core: HT Polypropylene
Construction
Cover: 20-24 Plaited, Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
5 mm1.5 kg/100m590 kgf
6 mm2.1 kg/100m850 kgf
7 mm2.8 kg/100m1150 kgf
8 mm3.3 kg/100m1450 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
