Technical rope data

DINGHY ROCK D® MIX TP

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter4–7 mm
Weight1.25–3.45 kg/100m
Breaking load900–2700 kgf
Material
Technora® & HT Polyester Fiber; Coated Dyneema® SK 78 Fiber
Construction
20-24 Plaited / 16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

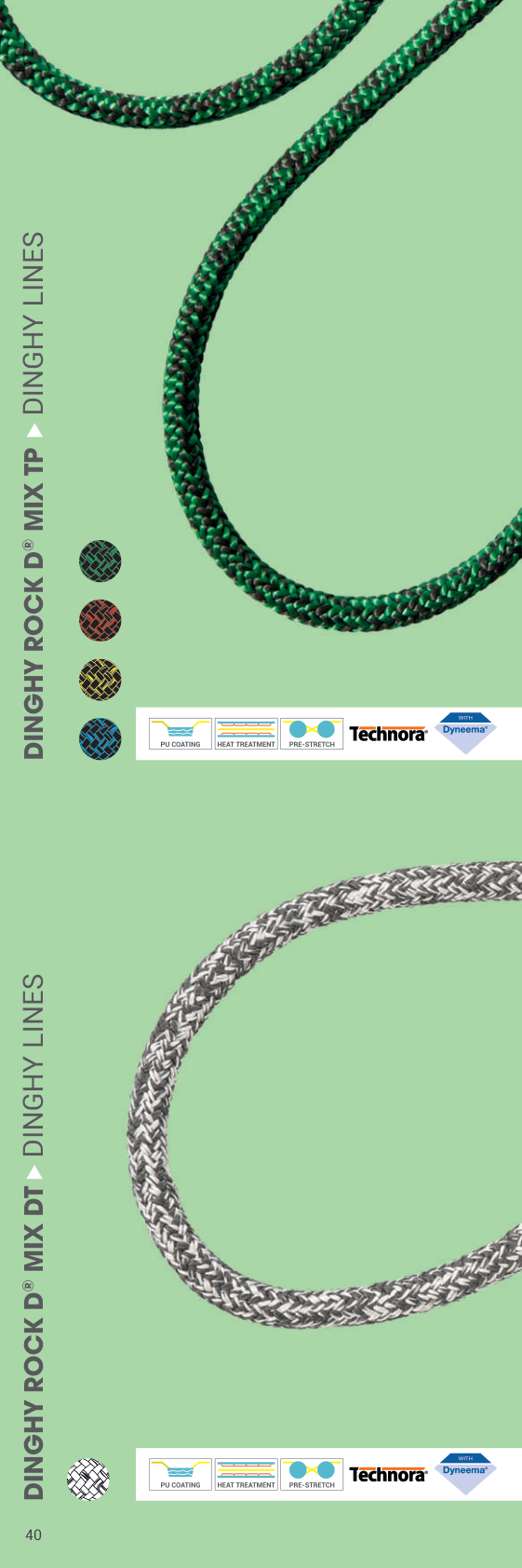

DINGHY ROCK D® MIX TP catalogue product image

Applications

Applications

Main Sheet

Benefits

Benefits

Good Grip on WinchesVery Good Performance in JammersVery Good Heat ResistanceLow StretchEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 42

Specific Gravity
0,99-1,20 kg/dm³
UV Resistance
Sufficient
Chemical Resistance
Excellent
Melting Point
147-256oC
Critical Temperature
65oC
Working Stretch
<1,5%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Excellent
Length
100-200 m Plastic Spool
Material
Cover: Technora® & HT Polyester Fiber Core: Coated Dyneema® SK 78 Fiber
Construction
Cover: 20-24 Plaited, Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
4 mm1.25 kg/100m900 kgf
5 mm1.7 kg/100m1200 kgf
6 mm2.6 kg/100m1800 kgf
7 mm3.45 kg/100m2700 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
