Technical rope data

DYNE K® SBF EXTENSION

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter6–16 mm
Weight2.3–15.1 kg/100m
Breaking load3750–31294 kgf
Material
Coated: Dyneema® SK 78/99
Construction
12 Strand Braided
Source catalogues
Off-Road
Related markets
Off-Road

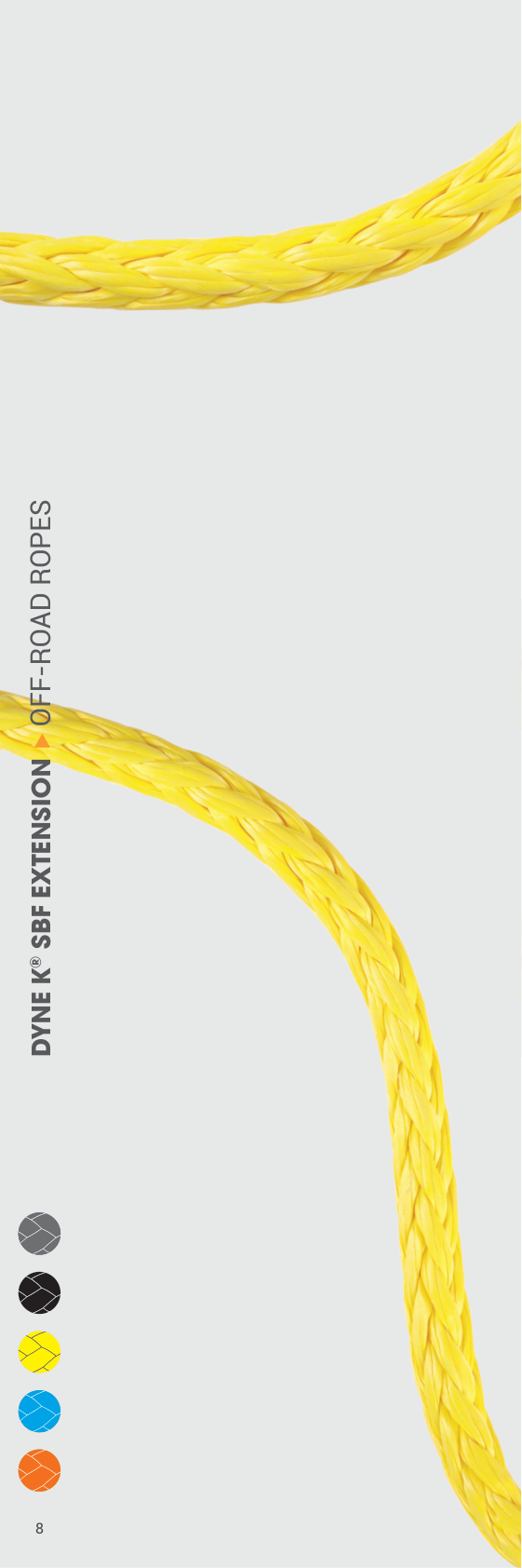

DYNE K® SBF EXTENSION catalogue product image

Applications

Applications

Winch Line

Benefits

Benefits

Superior Bending Fatigue (SBF)Excellent Breaking Load (SK99)BuoyantDurableVery Low StretchLightweightEasy to SpliceDoes not Kink

Source catalogue data

Technical rope data

Off-Road Ropes 2022 · PDF 10

Specific Gravity
0,97 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Excellent
Melting Point
147°C
Critical Temperature
65°C
Working Stretch
<1%
Fiber Water Absorption
None
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Standard
ISO 10325
Length
7,5m, 12m, 15m or 30m
Availability Note
Other Colours & Larger Diameters Upon Request

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm2.3 kg/100mSK78: 3750 kgf / SK99: 4425 kgf
8 mm4 kg/100mSK78: 6600 kgf / SK99: 7788 kgf
10 mm6.1 kg/100mSK78: 10400 kgf / SK99: 12272 kgf
12 mm8.7 kg/100mSK78: 15000 kgf / SK99: 17700 kgf
14 mm11.7 kg/100mSK78: 20400 kgf / SK99: 24072 kgf
16 mm15.1 kg/100mSK78: 26520 kgf / SK99: 31294 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
