IMEX

Technical rope data

DYNE K® SHACKLE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter4–18 mm
Weight—
Breaking load855–9380 kgf
Material
Coated Dyneema® SK 78 Fiber
Construction
12 Strand Plaited
Source catalogues
Leisure Marine

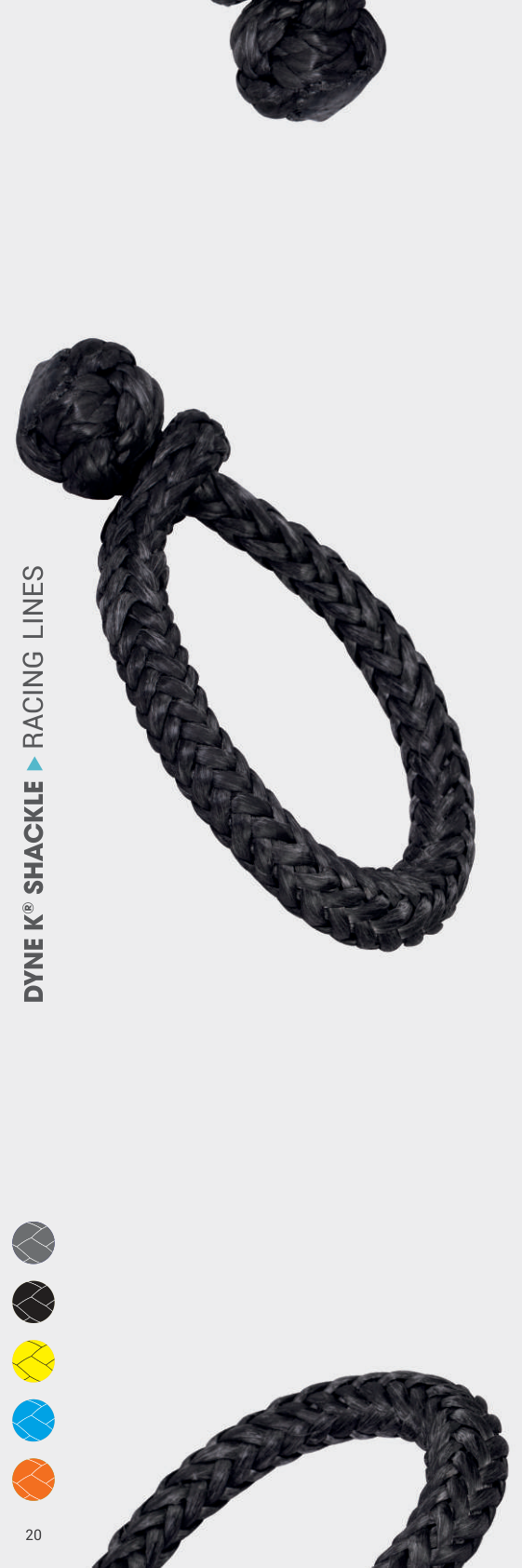

DYNE K® SHACKLE catalogue product image

Applications

Applications

Winch ShackleConnection Line

Benefits

Benefits

BuoyantUltra LightVery Low StretchShackles are Made of Dyneema®Easy to UseExtremely DurableCan be Opened and Closed QuicklySelf-Locking Under Load

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 22

Specific Gravity
0,97 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Excellent
Melting Point
147oC
Critical Temperature
65oC
Working Stretch
<1%
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Standard
ISO 10325
Material
Coated Dyneema® SK 78 Fiber
Construction
12 Strand Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
4 mm—855 kgf
6 mm—1150 kgf
7 mm—1485 kgf
8 mm—2340 kgf
10 mm—3360 kgf
12 mm—4670 kgf
14 mm—5980 kgf
18 mm—9380 kgf

Leisure Marine Ropes 2025 · PDF 22

Diameter (mm)SWL (kgf)Length (cm)
44788.5
65759.5
774311
8117011
10168811.5
12237512.5
14299015
18469017.5

Unspliced Break Load (All Tests are in Accordance with ISO 2307)

Technical values below are taken from the source catalogue data used by ROPE FINDER.
