Technical rope data

DYNE K® SPIE

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter20 mm
Weight23.3 kg/100m
Breaking load38760–45779 kgf
Material
Coated Dyneema® SK 78/99
Construction
12 Strand Braided
Source catalogues
Fast Ropes
Related markets
—

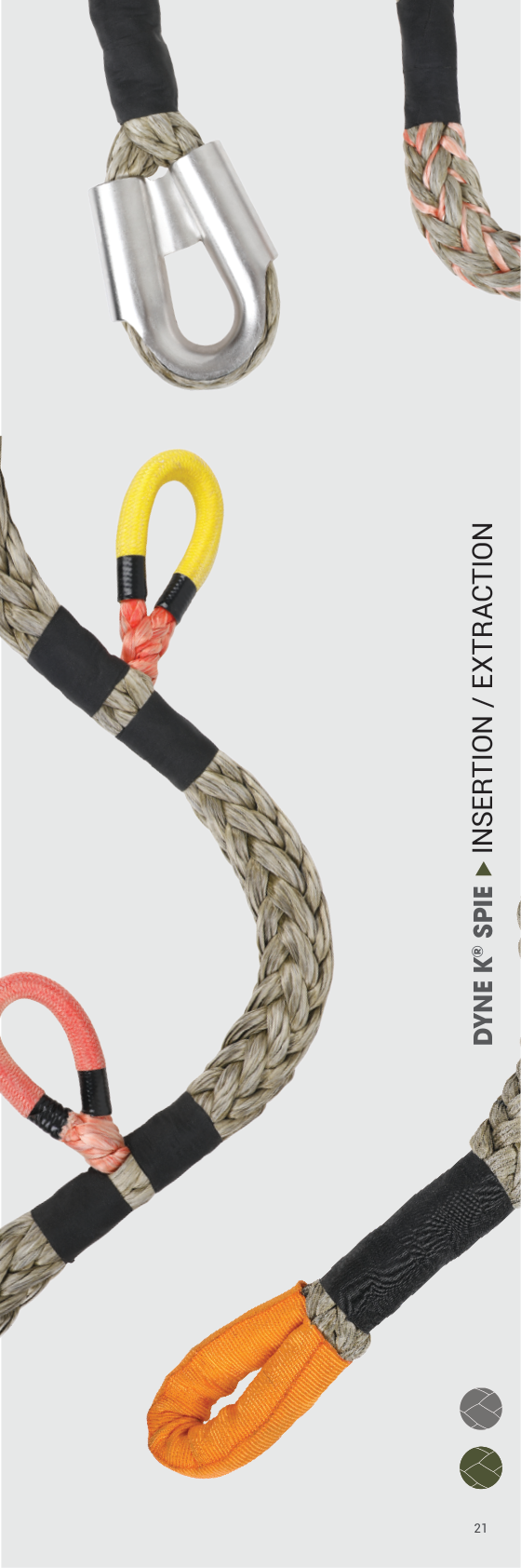

DYNE K® SPIE catalogue product image

Applications

Applications

Rapid Deployment of Special ForcesPersonnel Insertion and Extraction

Benefits

Benefits

Superior Abrasion ResistanceExcellent Breaking Load (SK99)BuoyantDurableVery Low StretchLightweightEasy to SpliceDoes not Kink

Source catalogue data

Technical rope data

Fast Ropes 2024 · PDF 23

Specific Gravity
0,97 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Excellent
Melting Point
147°C
Critical Temperature
65°C
Working Stretch
<1%
Fiber Water Absorption
None
Wet Abrasion
Excellent
Dry Abrasion
Excellent
Standard
EN ISO 10325
Length
112-156 feet
Availability Note
Other Colours & Larger Diameters Upon Request
Material
Coated Dyneema® SK 78/99
Construction
12 Strand Braided
Design Details
SS Thimble Extraction Loop (12-24 Places); 10 mm (3/8'') Extraction Loop Rope (Dyne K®); 34-46 meters; 112-156 feet; -0%, +10%

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
20 mm23.3 kg/100mSK78: 38760 kgf / SK99: 45779 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
