Technical rope data

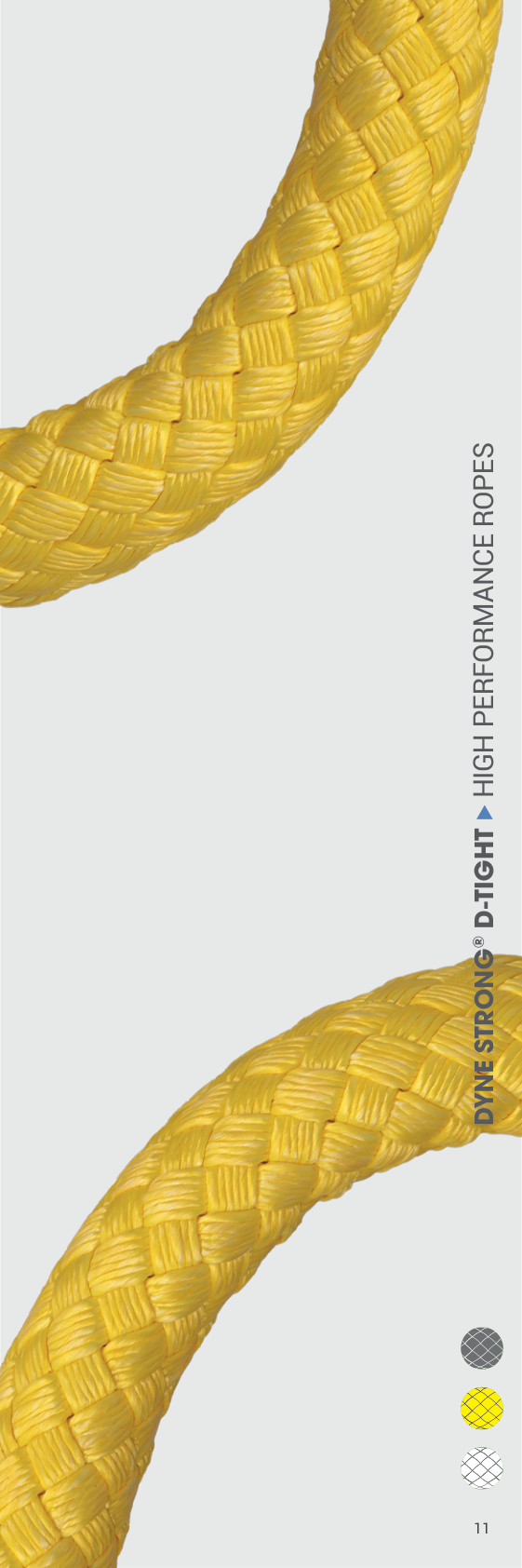

DYNE STRONG® D-TIGHT

Name: DYNE STRONG® D-TIGHT
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter22–60 mm

Weight29.65–232.65 kg/100m

Breaking load31310–256970 kgf

Applications

Vessel Primary Mooring LineTug Main Tow LineTug PendantSalvage RopeTrawl/Bridle Line

Benefits

Superior Abrasion ResistanceExcellent Breaking LoadDurableVery Low StretchLightweightDoes not Kink

Source catalogue data

Technical variants

Compare the catalogue ranges first, then review the exact variants below.

Diameter	Weight	Breaking load – Unspliced	Breaking load – Spliced
22 mm	29.65 kg/100m	34780 kgf	31310 kgf
24 mm	37.75 kg/100m	41000 kgf	36920 kgf
26 mm	42.7 kg/100m	48030 kgf	43240 kgf
28 mm	47.6 kg/100m	55990 kgf	50400 kgf
30 mm	59.1 kg/100m	64960 kgf	58500 kgf
32 mm	64 kg/100m	75060 kgf	67510 kgf
34 mm	72.1 kg/100m	84030 kgf	75670 kgf
36 mm	88.25 kg/100m	93000 kgf	83720 kgf
38 mm	93.2 kg/100m	103000 kgf	92700 kgf
40 mm	102.15 kg/100m	116660 kgf	105100 kgf
42 mm	110 kg/100m	127870 kgf	115200 kgf
44 mm	125.75 kg/100m	140730 kgf	126450 kgf
48 mm	149.3 kg/100m	164180 kgf	147860 kgf
52 mm	168.15 kg/100m	195860 kgf	176450 kgf
56 mm	188.6 kg/100m	223320 kgf	200900 kgf
60 mm	232.65 kg/100m	256970 kgf	231500 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
