IMEX

Technical rope data

DYNE VIPERA®COATED

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter16–40 mm
Weight20.5–103 kg/100m
Breaking load13640–78000 kgf
Material
HT Polyester Fiber; Coated Dyneema® SK 75/78 Fiber
Construction
24-32 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

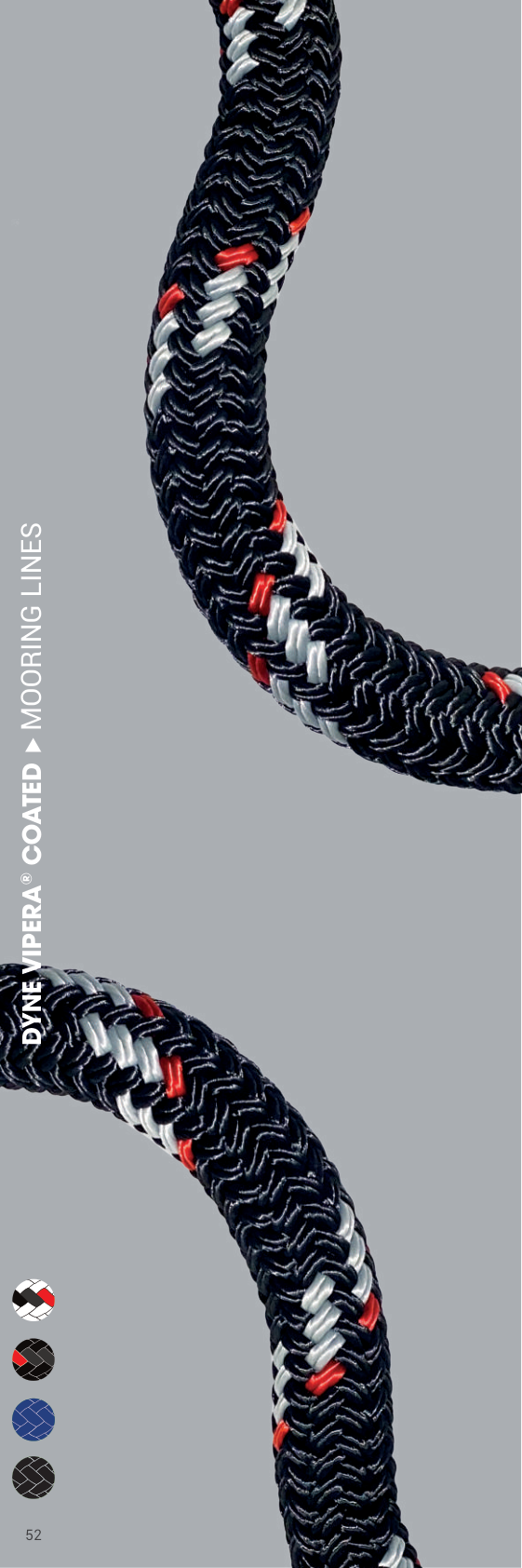

DYNE VIPERA®COATED catalogue product image

Applications

Applications

Winch LineTowing LineMooring Line

Benefits

Benefits

Excellent Breaking LoadDurableVery Low StretchFirm and RoundDoes not Kink

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 54

Specific Gravity
1,00-1,20 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
147-256oC
Critical Temperature
65oC
Fiber Water Absorption
Approx. %0-1
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
<1%
Length
Upon Request
Material
Cover: HT Polyester Fiber Core: Coated Dyneema® SK 75/78 Fiber
Construction
Cover: 24-32 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
16 mm20.5 kg/100m15000 kgf13640 kgf
18 mm25 kg/100m19000 kgf17270 kgf
20 mm30.5 kg/100m22500 kgf20450 kgf
22 mm35.8 kg/100m26250 kgf23860 kgf
24 mm40.5 kg/100m30000 kgf27270 kgf
26 mm46 kg/100m33750 kgf30680 kgf
28 mm56 kg/100m41250 kgf37500 kgf
30 mm62.3 kg/100m45000 kgf40910 kgf
32 mm70.2 kg/100m52500 kgf47730 kgf
36 mm85.5 kg/100m66000 kgf60000 kgf
40 mm103 kg/100m78000 kgf70910 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
