Technical rope data

DYNE VIPERA®UNCOATED

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter16–40 mm
Weight20.5–103 kg/100m
Breaking load13640–78000 kgf
Material
HT Polyester Fiber; Uncoated Dyneema® SK 75/78 Fiber
Construction
24-32 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

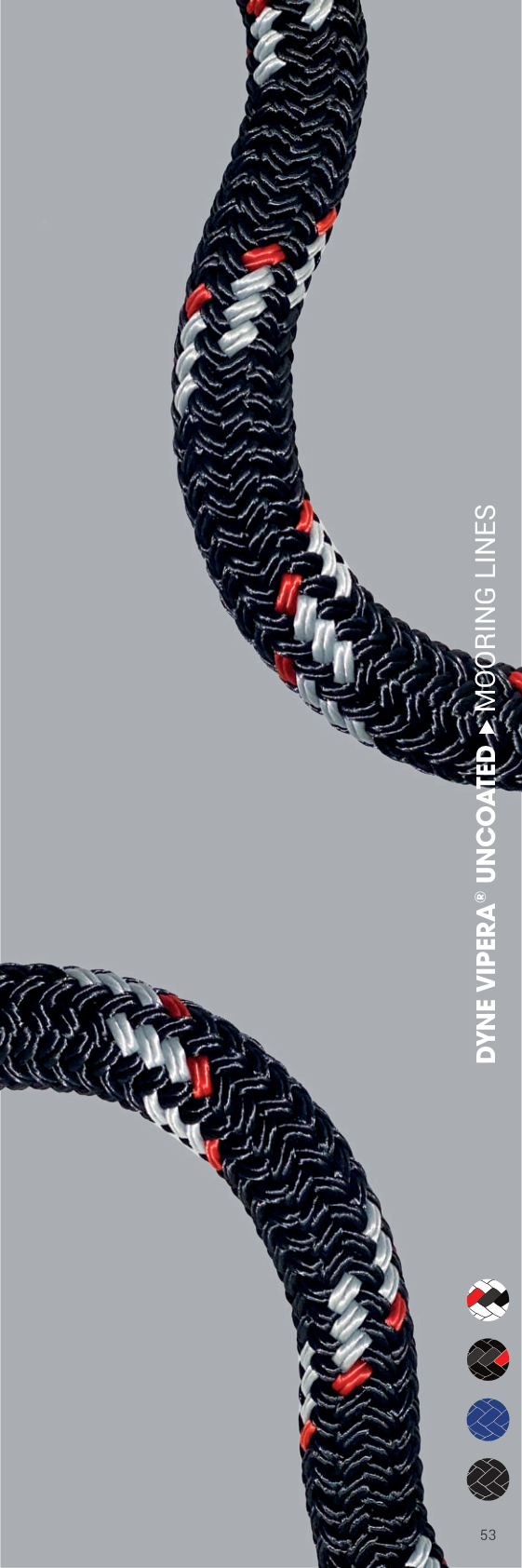

DYNE VIPERA®UNCOATED catalogue product image

Applications

Applications

Winch LineTowing LineMooring Line

Benefits

Benefits

Excellent Breaking LoadDurableLow StretchFirm and RoundDoes not KinkFlexible

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 55

Specific Gravity
1,00-1,20 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
147-256oC
Critical Temperature
65oC
Fiber Water Absorption
Approx. %0-1
Wet Abrasion
Good
Dry Abrasion
Good
Elongation at Break
<1%
Length
Upon Request
Material
Cover: HT Polyester Fiber Core: Uncoated Dyneema® SK 75/78 Fiber
Construction
Cover: 24-32 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load – UnsplicedBreaking load – Spliced
16 mm20.5 kg/100m15000 kgf13640 kgf
18 mm25 kg/100m19000 kgf17270 kgf
20 mm30.5 kg/100m22500 kgf20450 kgf
22 mm35.8 kg/100m26250 kgf23860 kgf
24 mm40.5 kg/100m30000 kgf27270 kgf
26 mm46 kg/100m33750 kgf30680 kgf
28 mm56 kg/100m41250 kgf37500 kgf
30 mm62.3 kg/100m45000 kgf40910 kgf
32 mm70.2 kg/100m52500 kgf47730 kgf
36 mm85.5 kg/100m66000 kgf60000 kgf
40 mm103 kg/100m78000 kgf70910 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
