IMEX

Technical rope data

GP ROCK D® MIX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter8–24 mm
Weight5.15–34.35 kg/100m
Breaking load5000–37830 kgf
Material
HT Polyester Fiber; Coated Dyneema® SK 78/99 Fiber
Construction
24-32 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

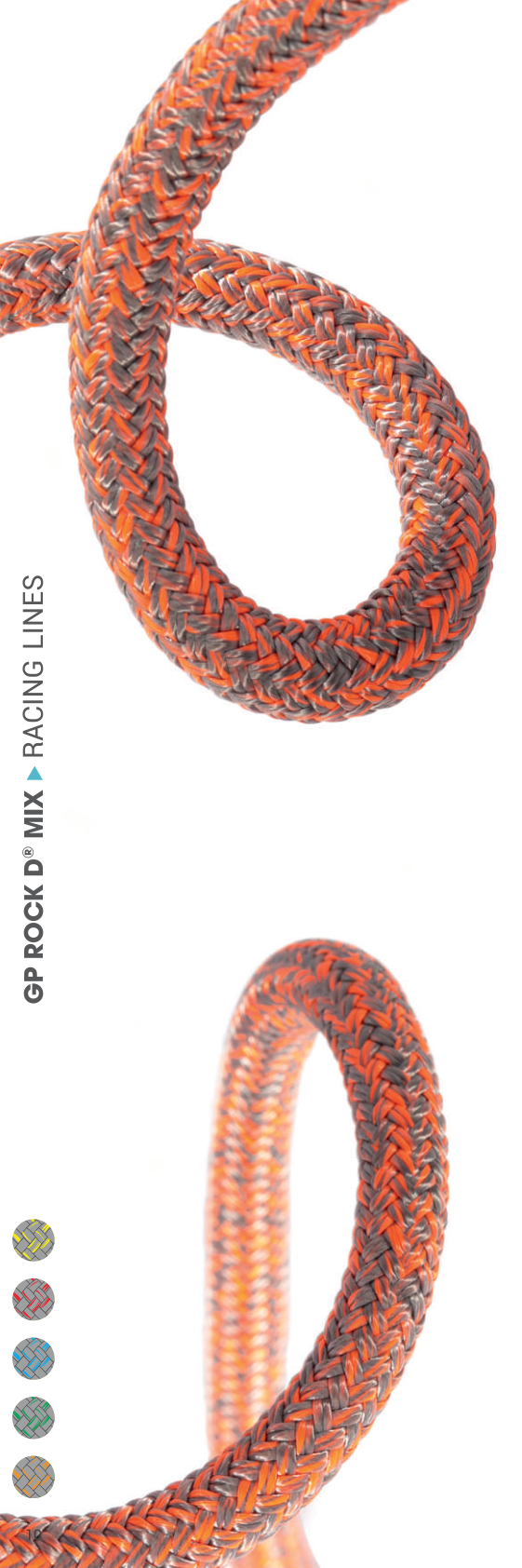

GP ROCK D® MIX catalogue product image

Applications

Applications

Main HalyardGenoa HalyardSpi HalyardReefing LinesMain SheetGenoa SheetSpi SheetSpi Guys

Benefits

Benefits

Good Performance in JammersLow StretchEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 12

Specific Gravity
0,99-1,20 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
147-256oC
Critical Temperature
65oC
Working Stretch
<1,5%
Fiber Water Absorption
Approx. %0-1
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic/Wooden Spool or Coil
Material
Cover: HT Polyester Fiber Core: Coated Dyneema® SK 78/99 Fiber
Construction
Cover: 24-32 Plaited Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
8 mm5.15 kg/100mSK78: 5000 kgf / SK99: 5975 kgf
10 mm7.05 kg/100mSK78: 7500 kgf / SK99: 8960 kgf
12 mm9.85 kg/100mSK78: 10000 kgf / SK99: 11950 kgf
14 mm13.1 kg/100mSK78: 13880 kgf / SK99: 16585 kgf
16 mm17.3 kg/100mSK78: 16660 kgf / SK99: 19905 kgf
18 mm21.5 kg/100mSK78: 21660 kgf / SK99: 25880 kgf
20 mm27.1 kg/100mSK78: 25550 kgf / SK99: 30530 kgf
22 mm29.45 kg/100mSK78: 27490 kgf / SK99: 32850 kgf
24 mm34.35 kg/100mSK78: 31660 kgf / SK99: 37830 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
