Technical rope data

GP ROCK D® MIX TP

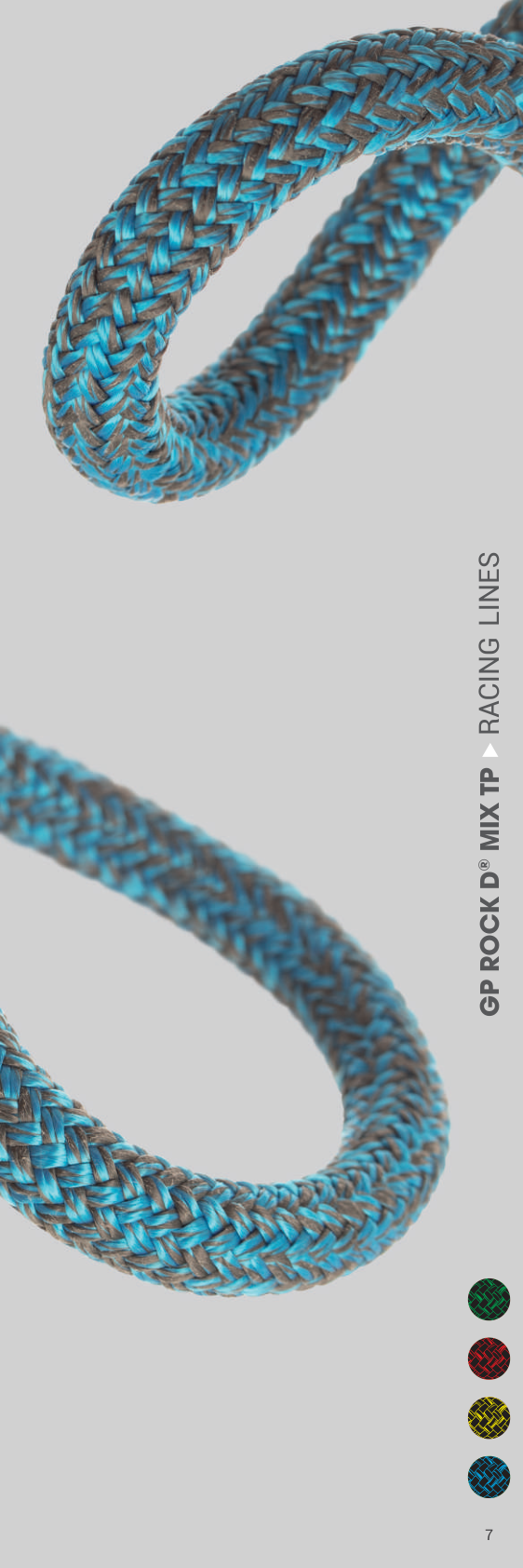

Name: GP ROCK D® MIX TP
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter8–24 mm

Weight4.85–34.8 kg/100m

Breaking load5000–37830 kgf

Material: %50 Technora® Fiber %50 HT Polyester Fiber; Coated Dyneema® SK 78/99 Fiber
Construction: 24-32 Plaited / 12 Plaited
Source catalogues: Leisure Marine
Related markets: Leisure Marine

Applications

Main HalyardGenoa HalyardSpi HalyardReefing LinesMain SheetGenoa SheetSpi SheetSpi Guys

Benefits

Good Grip on WinchesVery Good Performance in JammersExcellent Breaking Load (SK99)Very Good Heat ResistanceLow StretchEasy to Splice

Source catalogue data

Specific Gravity: 0,99-1,20 kg/dm³
UV Resistance: Sufficient
Chemical Resistance: Excellent
Melting Point: 147-256oC
Critical Temperature: 65oC
Working Stretch: <1,5%
Fiber Water Absorption: Approx. %1-2
Wet Abrasion: Excellent
Dry Abrasion: Excellent
Length: 100-200 m Plastic/Wooden Spool or Coil
Material: Cover: %50 Technora® Fiber %50 HT Polyester Fiber Core: Coated Dyneema® SK 78/99 Fiber
Construction: Cover: 24-32 Plaited Core: 12 Plaited
