Technical rope data

RACING ROCKET MIX TP

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter6–10 mm
Weight3.25–7.4 kg/100m
Breaking load2050–6000 kgf
Material
Technora® & HT Polyester Fiber; Coated Dyneema® SK 78 Fiber
Construction
16-20 Plaited / 12 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

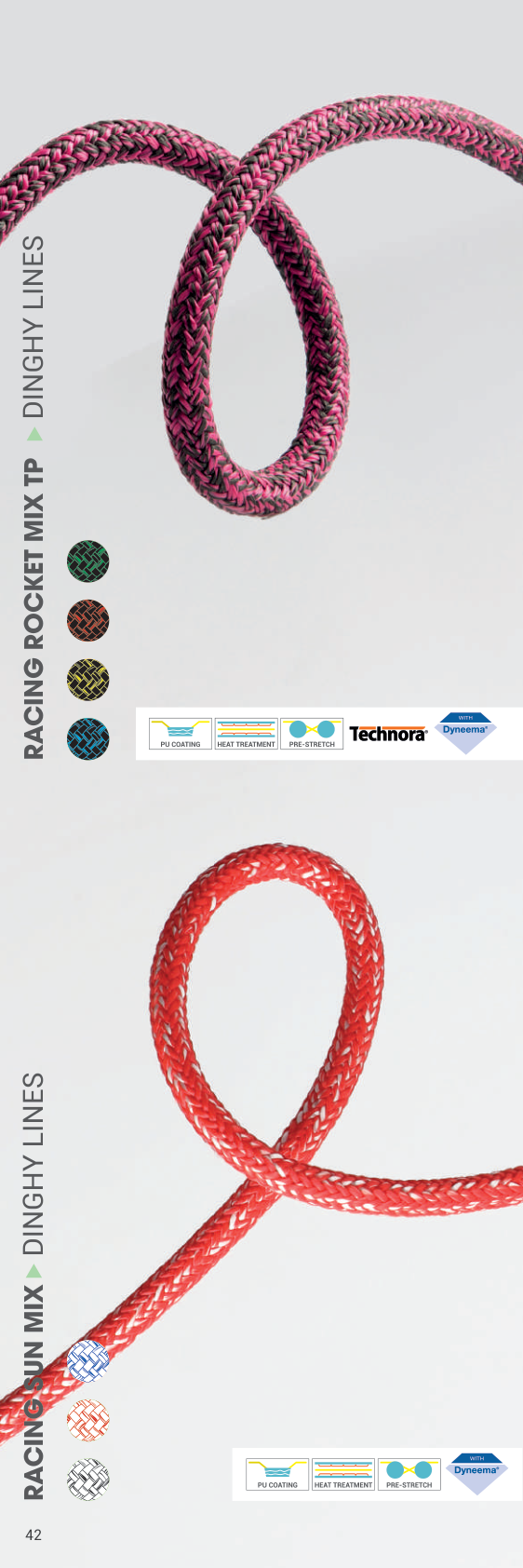

RACING ROCKET MIX TP catalogue product image

Applications

Applications

Main Sheet

Benefits

Benefits

Excellent Grip on WinchesExcellent Heat ResistanceExcellent Abrasion ResistanceLow StretchEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 44

Specific Gravity
1,10 kg/dm³
UV Resistance
Sufficient
Chemical Resistance
Excellent
Melting Point
147-256oC
Critical Temperature
65oC
Working Stretch
<1,5%
Fiber Water Absorption
Approx. %1-2
Wet Abrasion
Excellent
Length
100-200 m Plastic Spool
Material
Cover: Technora® & HT Polyester Fiber Core: Coated Dyneema® SK 78 Fiber
Construction
Cover: 16-20 Plaited, Core: 12 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
6 mm3.25 kg/100m2050 kgf
7 mm4.4 kg/100m3000 kgf
8 mm5.3 kg/100m4100 kgf
10 mm7.4 kg/100m6000 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
