Technical rope data

ROCK D® MIX

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter3–7 mm
Weight0.95–3.3 kg/100m
Breaking load600–2700 kgf
Material
HT Polyester Fiber; Coated Dyneema® SK 78 Fiber
Construction
20-24 Plaited / 16 Plaited
Source catalogues
Leisure Marine
Related markets
Leisure Marine

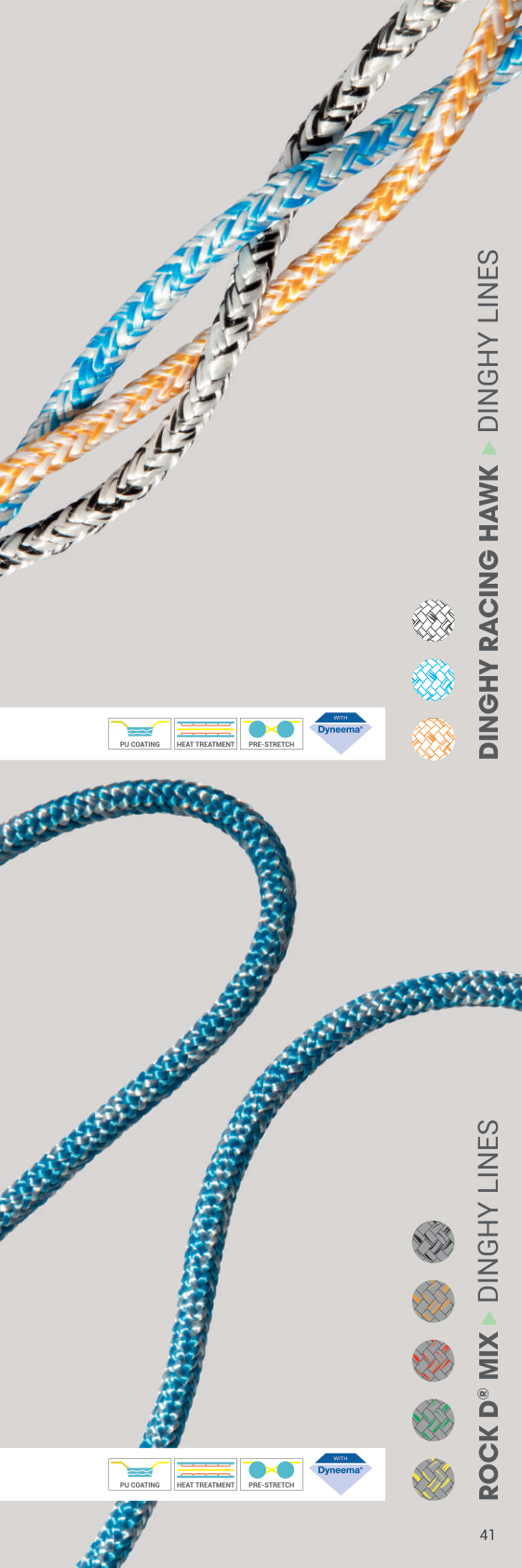

ROCK D® MIX catalogue product image

Applications

Applications

Reefing Lines

Benefits

Benefits

Good Performance in JammersLow StretchEasy to Splice

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 43

Specific Gravity
0,99-1,20 kg/dm³
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
147-256oC
Critical Temperature
65oC
Working Stretch
<1,5%
Fiber Water Absorption
Approx. %0-1
Wet Abrasion
Good
Length
100-200 m Plastic Spool
Material
Cover: HT Polyester Fiber Core: Coated Dyneema® SK 78 Fiber
Construction
Cover: 20-24 Plaited, Core: 16 Plaited

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
3 mm0.95 kg/100m600 kgf
4 mm1.1 kg/100m900 kgf
5 mm1.55 kg/100m1200 kgf
6 mm2.45 kg/100m1800 kgf
7 mm3.3 kg/100m2700 kgf

Technical values below are taken from the source catalogue data used by ROPE FINDER.
