Technical rope data

ROCK SOFT-D

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Request a quoteView Brochure

Source catalogue data

Technical rope data

Diameter4–10 mm
Weight1.2–5.8 kg/100m
Breaking load500–2600 kgf
Material
Blended Dyneema® SK 78-Polyester Staple Fiber
Construction
8 Plaited (Hollow Braid)
Source catalogues
Leisure Marine
Related markets
Leisure Marine

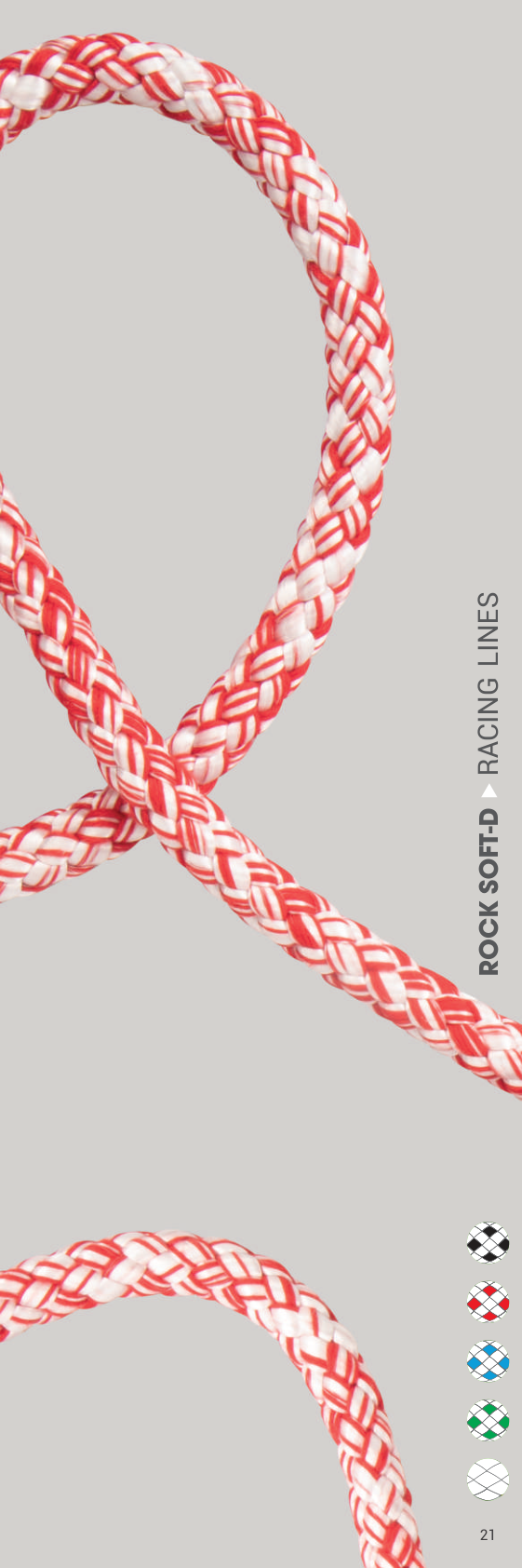

ROCK SOFT-D catalogue product image

Applications

Applications

Genoa SheetSpi SheetGennaker Tack-LineMain Sheet

Benefits

Benefits

Very Suitable for JammersComfortable HandlingLow StretchLightweightExcellent Dinghy SheetHigh Knotted Strength

Source catalogue data

Technical rope data

Leisure Marine Ropes 2025 · PDF 23

Specific Gravity
0,99-1,20 kg/dm3
UV Resistance
Excellent
Chemical Resistance
Good
Melting Point
147oC
Critical Temperature
65oC
Working Stretch
<2%
Fiber Water Absorption
Approx. %0-1
Wet Abrasion
Good
Dry Abrasion
Good
Length
100-200 m Plastic Spool or Coil
Material
Blended Dyneema® SK 78-Polyester Staple Fiber
Construction
8 Plaited (Hollow Braid)

Technical variants

Catalogue variant data

Compare the catalogue ranges first, then review the exact variants below.

DiameterWeightBreaking load
4 mm1.2 kg/100m500 kgf
5 mm1.55 kg/100m750 kgf
6 mm1.95 kg/100m1000 kgf
7 mm2.75 kg/100m1250 kgf
8 mm3.85 kg/100m1500 kgf
10 mm5.8 kg/100m2600 kgf
