Technical rope data

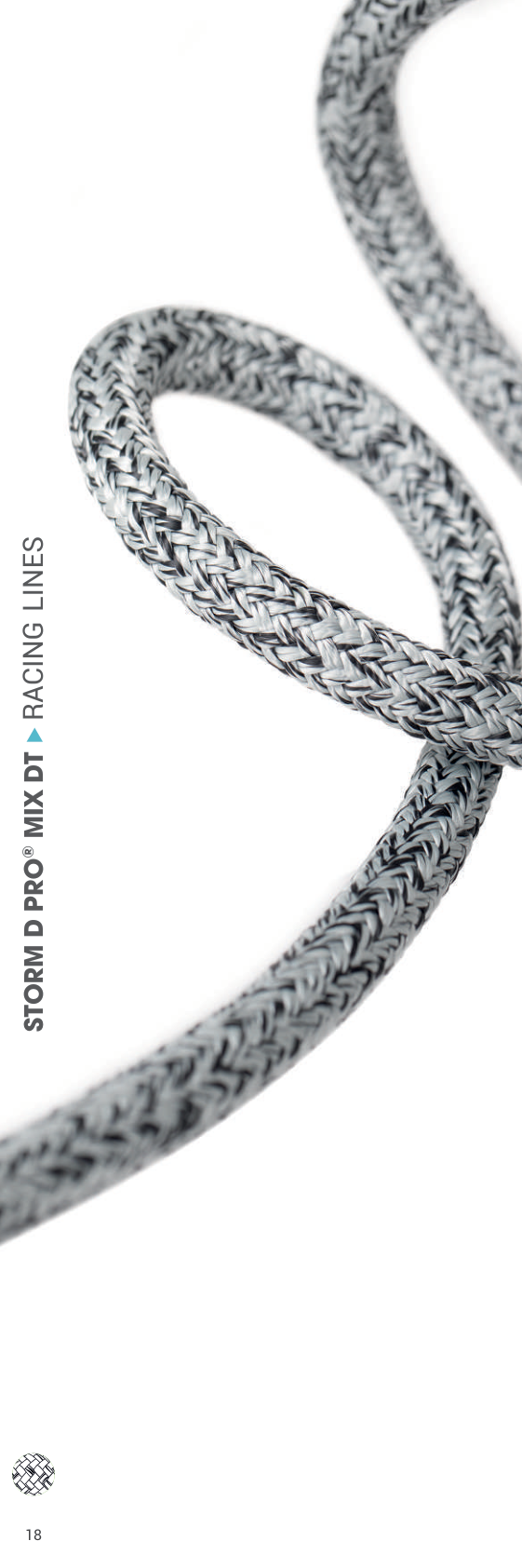

STORM D PRO® MIX DT

Name: STORM D PRO® MIX DT
Brand: KAYA ROPES

Catalogue product. Technical values below are taken from the source catalogue data used by ROPE FINDER.

Source catalogue data

Technical rope data

Diameter8–24 mm

Weight4.05–32.85 kg/100m

Breaking load3600–34750 kgf

Material: %50 Technora® Fiber %50 Dyneema® SK 78 Fiber; Coated Dyneema® SK 78/99 Fiber
Construction: 24-32 Plaited / 12 Plaited
Source catalogues: Leisure Marine
Related markets: Leisure Marine

Applications

Main SheetGenoa SheetSpi SheetSpi GuysGennaker Tack-LineBackstays

Benefits

Excellent Grip on WinchesExcellent Breaking Load (SK99)Good Heat ResistanceLow StretchEasy to Splice

Source catalogue data

Specific Gravity: 0,99-1,20 kg/dm3
UV Resistance: Good
Chemical Resistance: Excellent
Melting Point: 147oC
Critical Temperature: 65oC
Working Stretch: <1,5%
Fiber Water Absorption: Approx. %0-1
Wet Abrasion: Excellent
Dry Abrasion: Excellent
Length: 100-200 m Plastic/Wooden Spool or Coil
Material: Cover: %50 Technora® Fiber %50 Dyneema® SK 78 Fiber Core: Coated Dyneema® SK 78/99 Fiber
Construction: Cover: 24-32 Plaited Core: 12 Plaited
